FROM 100 HP - THE PERFECT START FOR THE FARMER

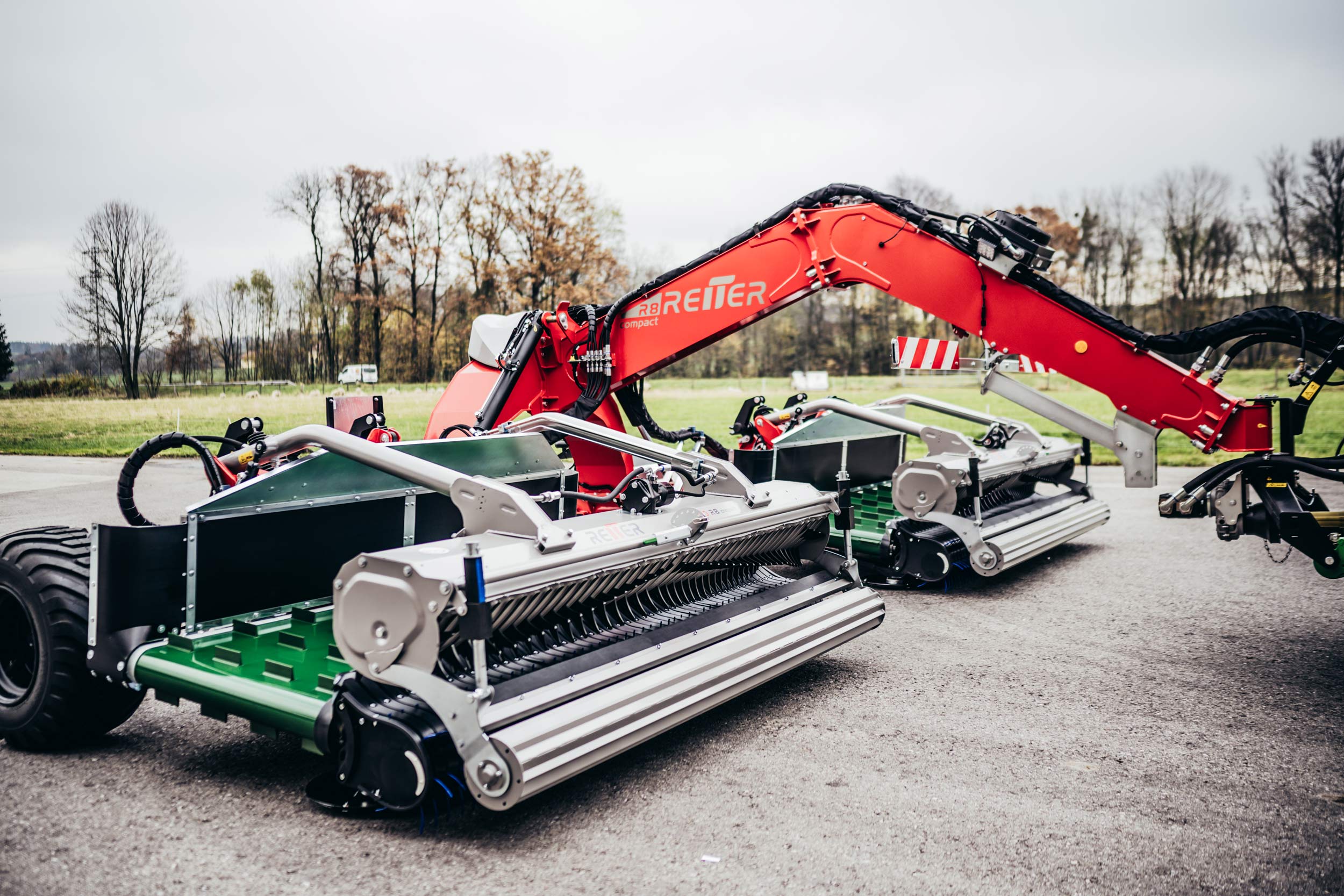

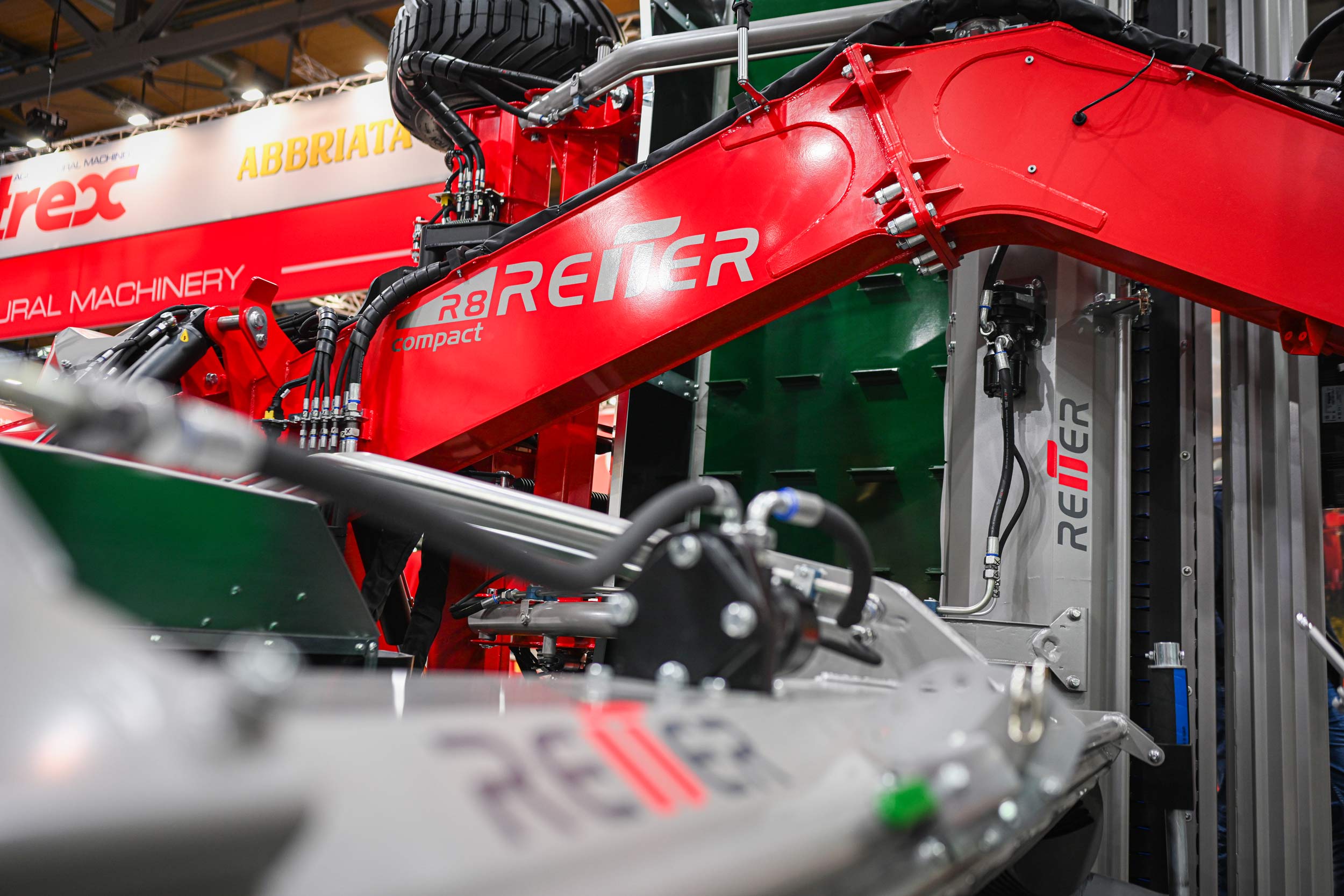

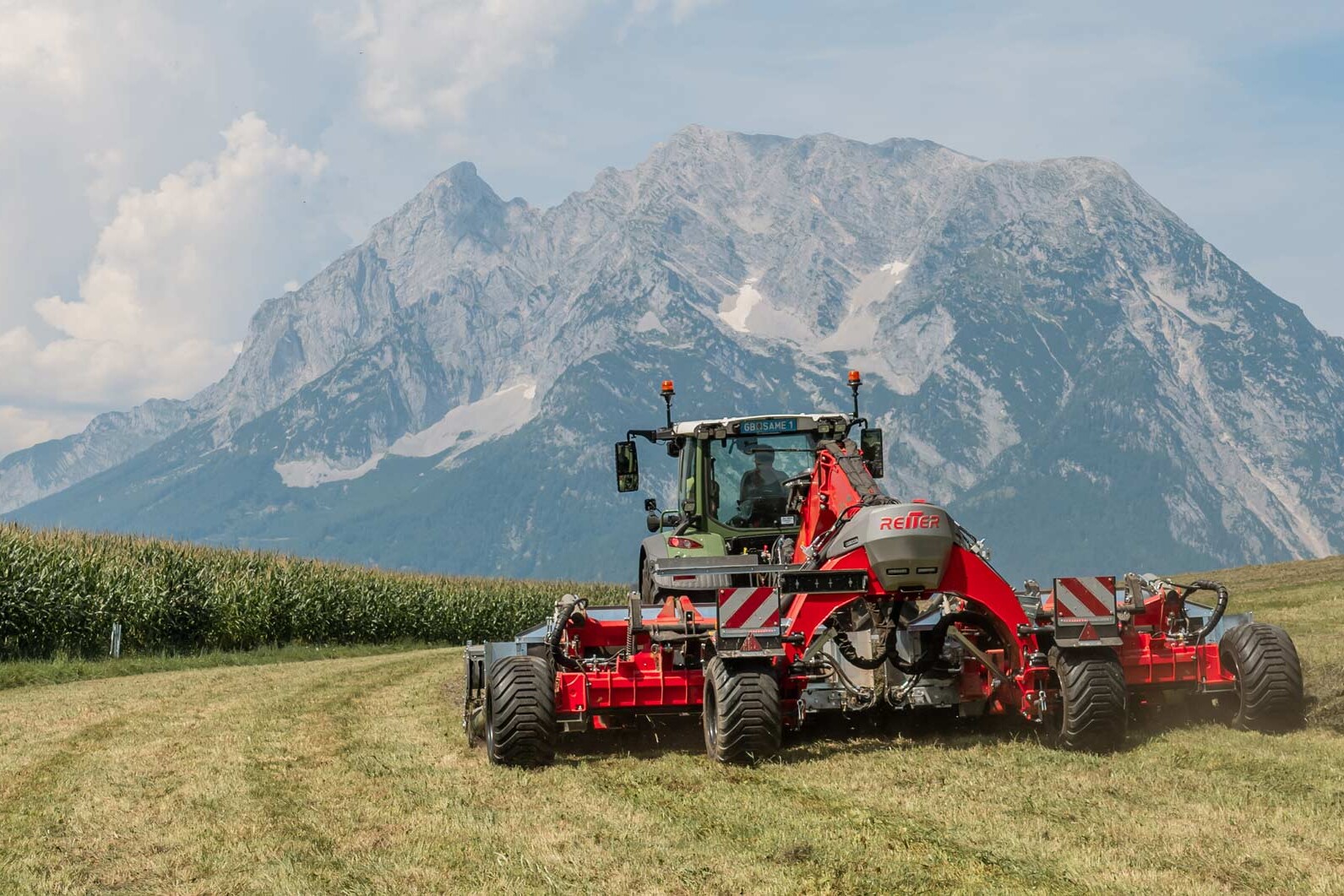

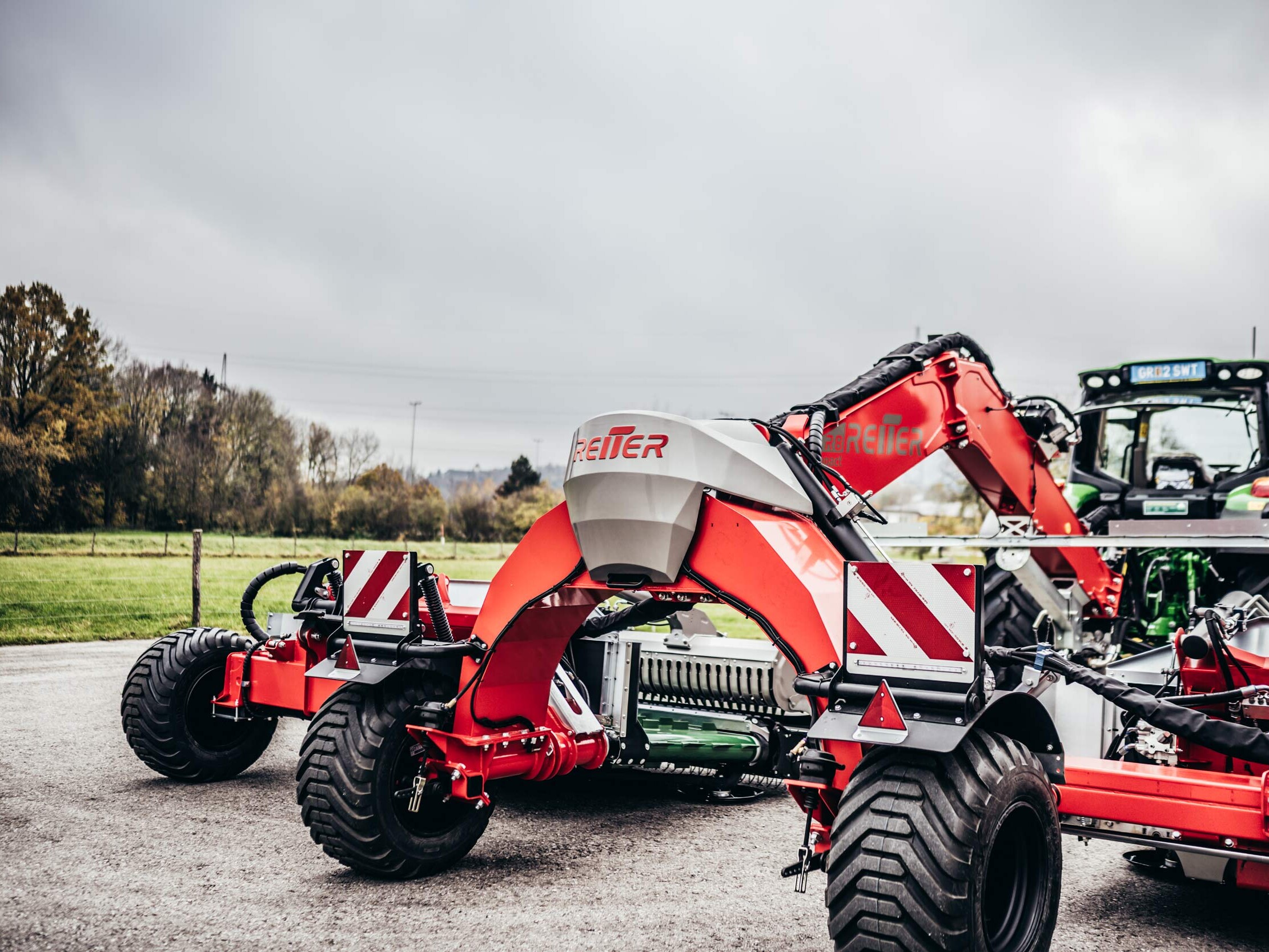

RESPIRO R8 compact

RESPIRO R8 compact is a lightweight version from 100 hp,
with the usual unique features.

Lightweight version from 100 hp
4-wheel chassis, perfectly smooth running and weight distribution, suitable for slopes & best ground adaptation
Manoeuvrability due to 90º steering angle
Single excavation
Patented suspension of the work units

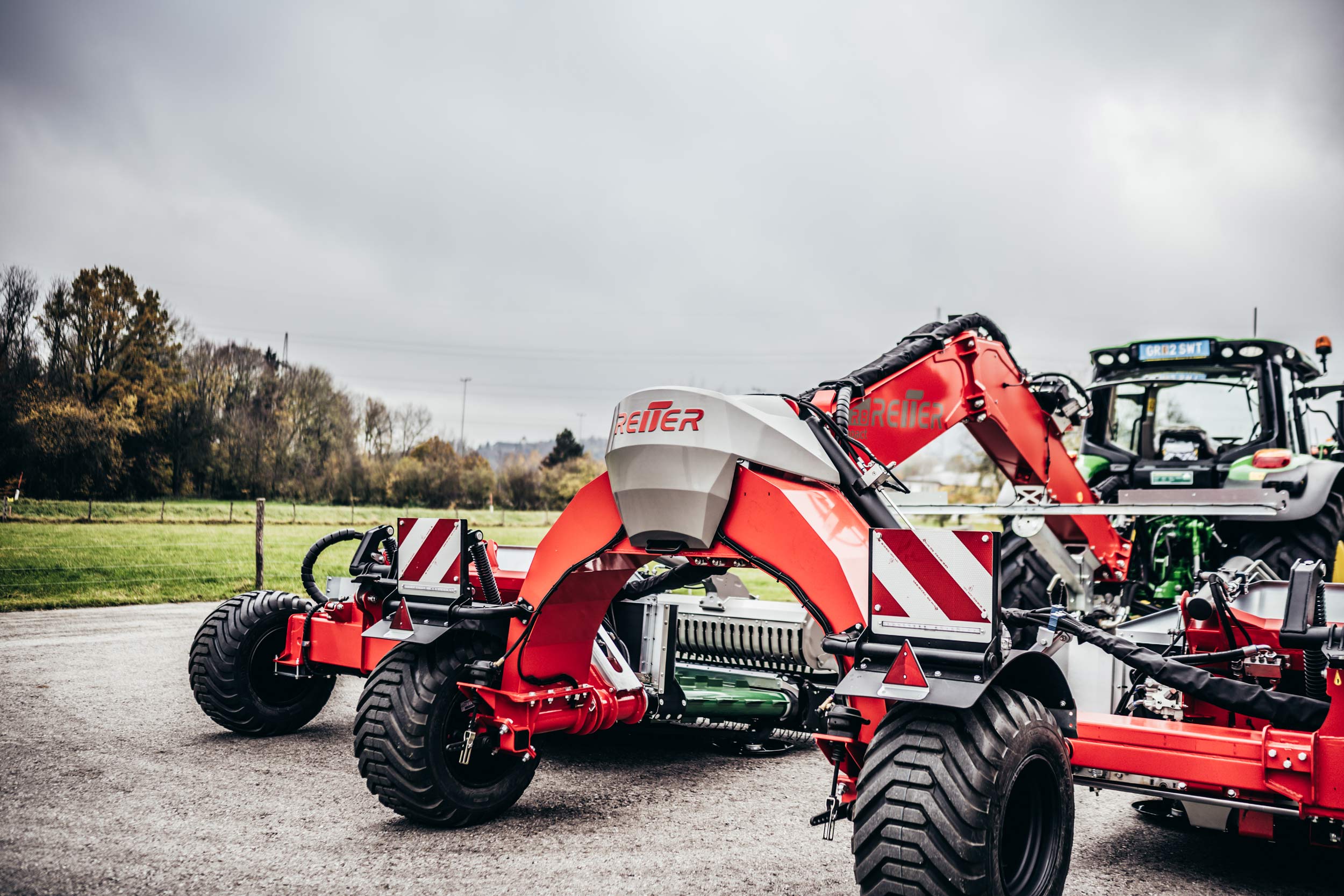

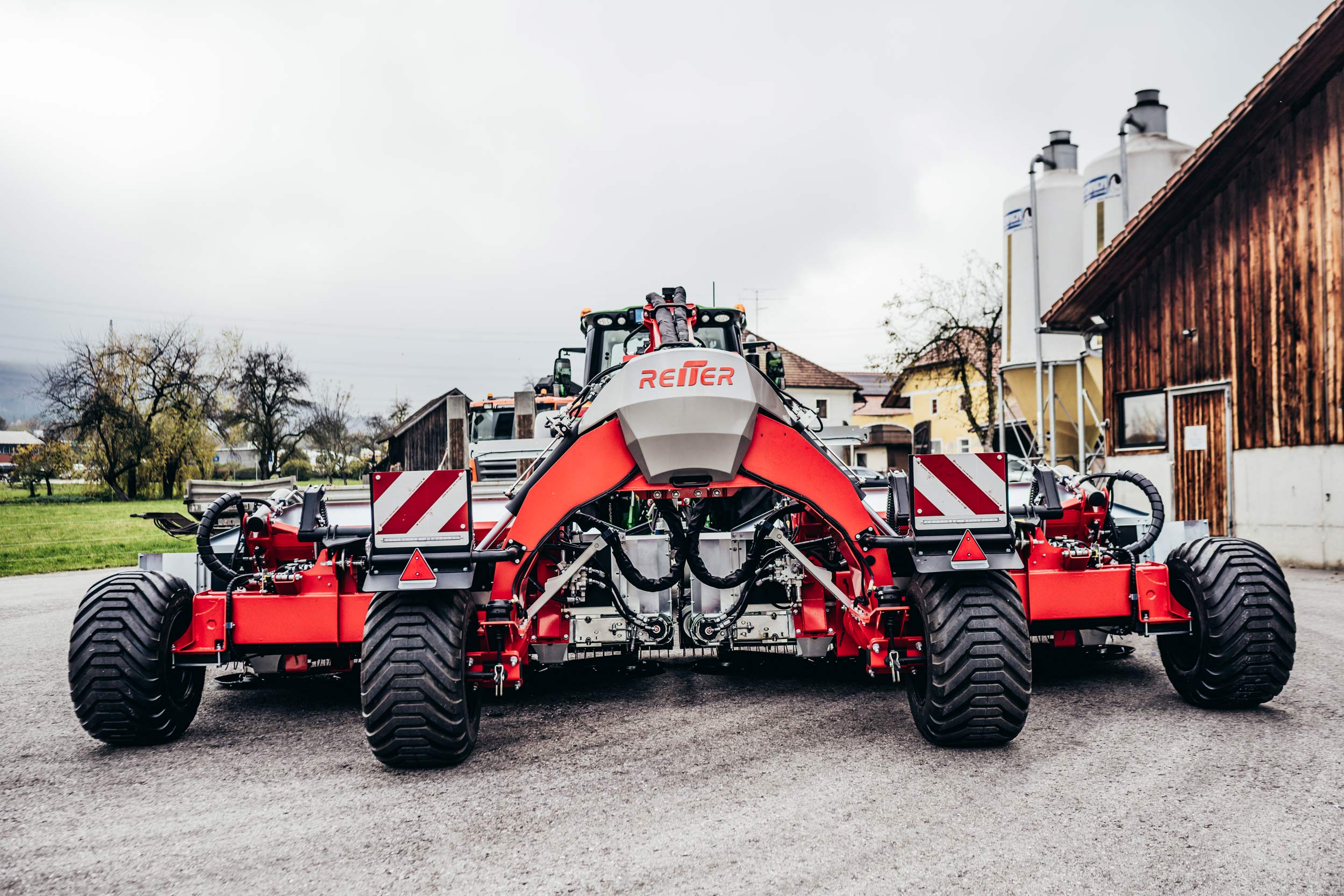

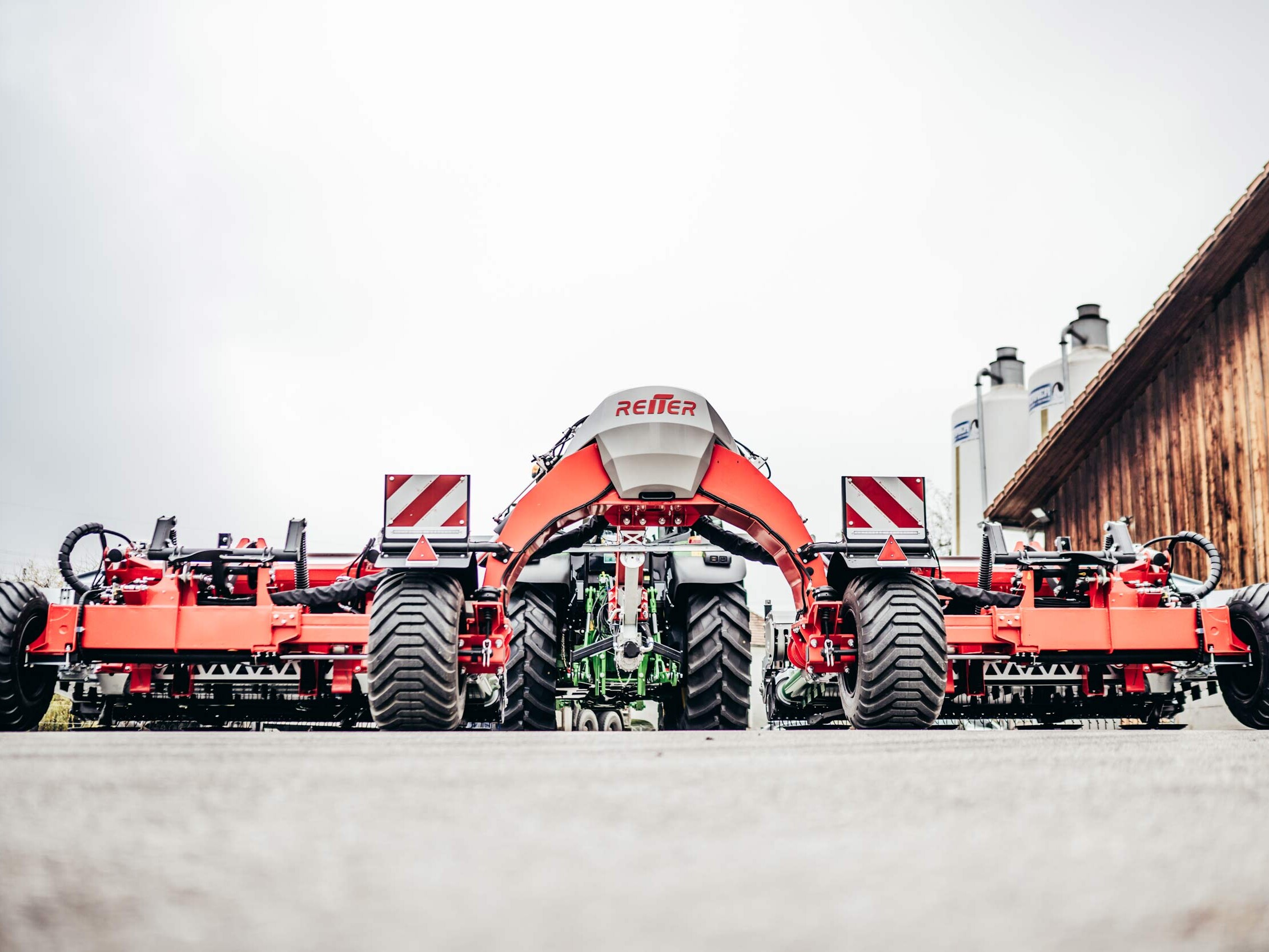

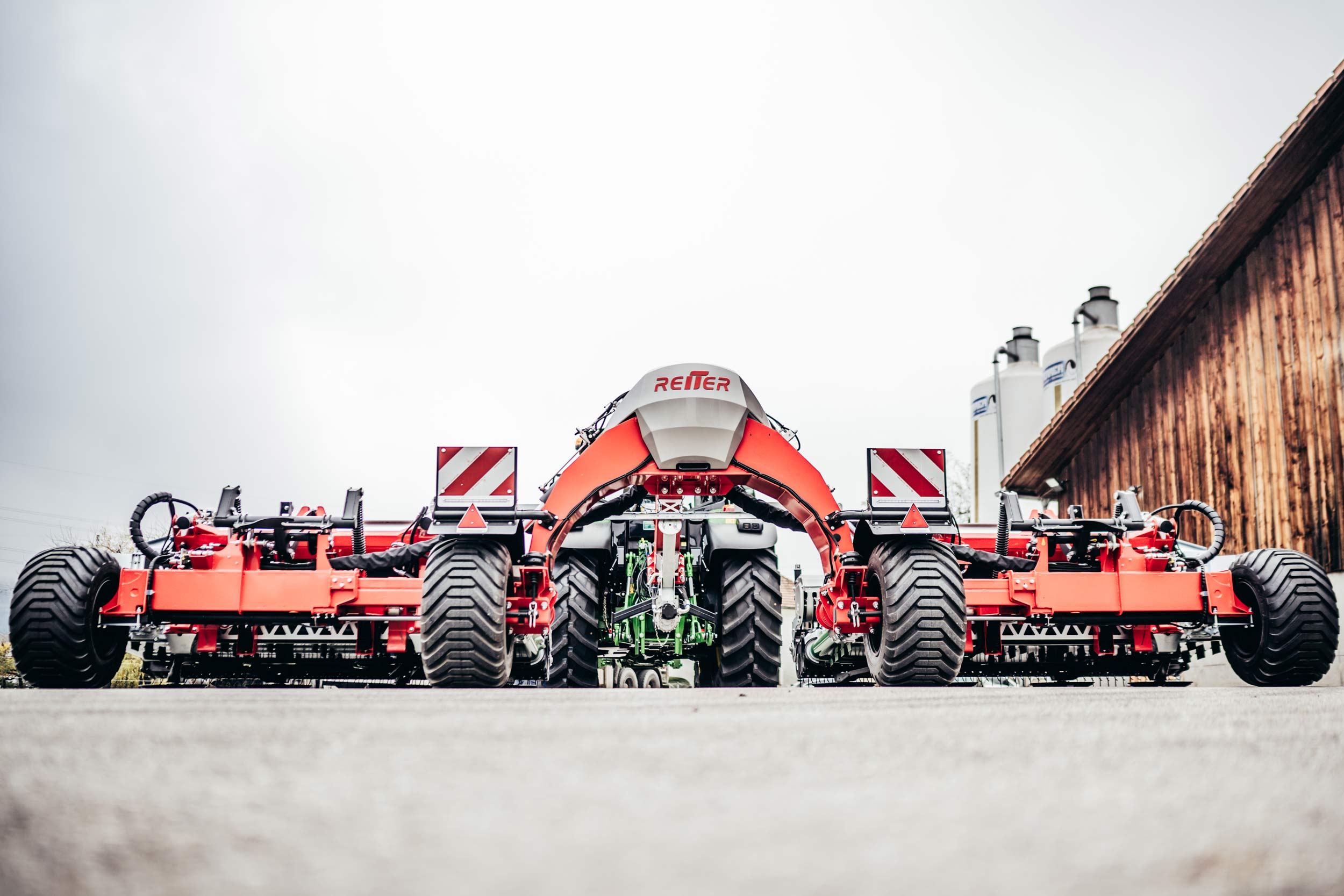

Quick & easy folding; safe to transport
Rake height adjustment and adjustment of the belt speed from the tractor cab as well as automatic belt control and belt stop

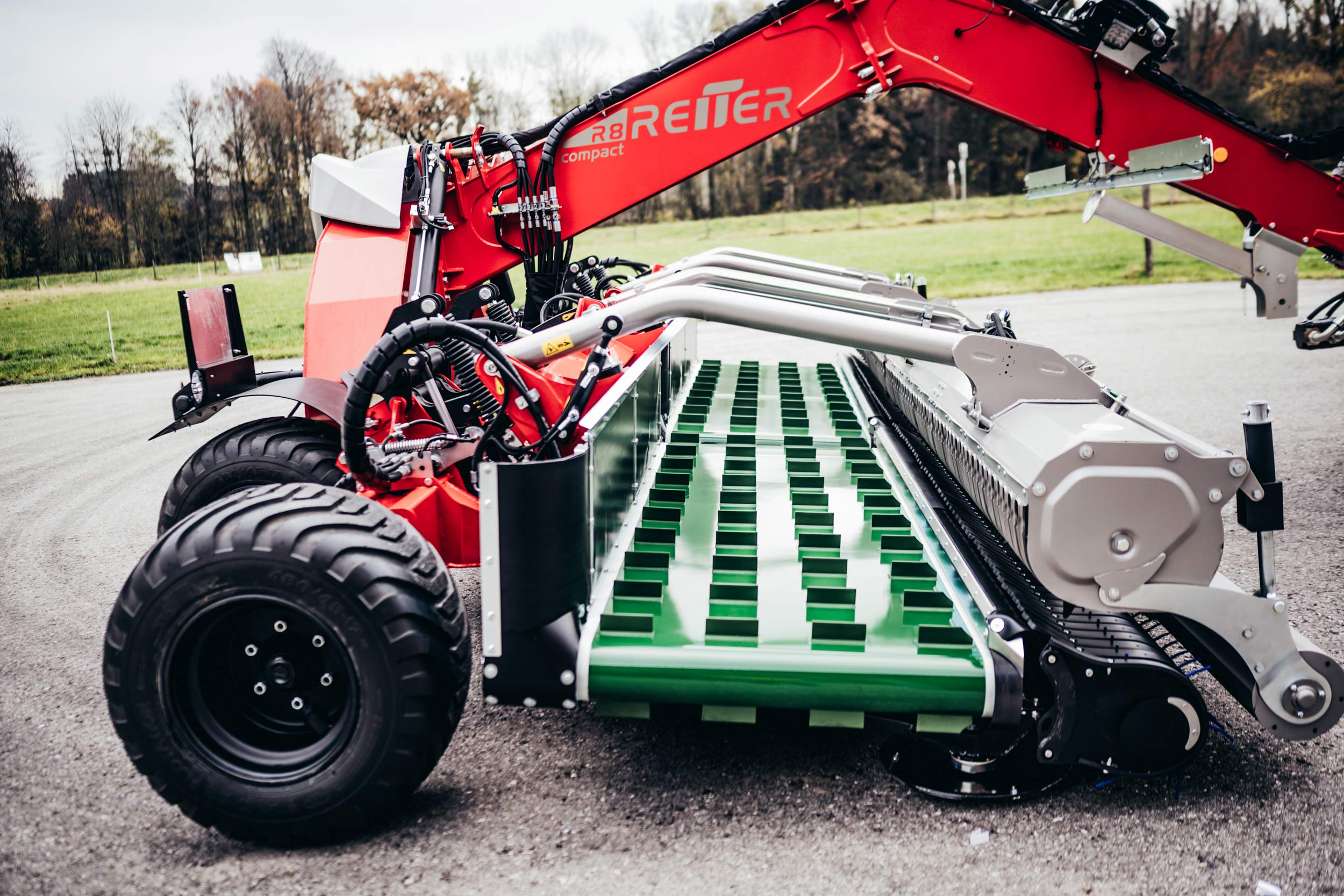

Conveyor rotor like profi machine

Enquire now

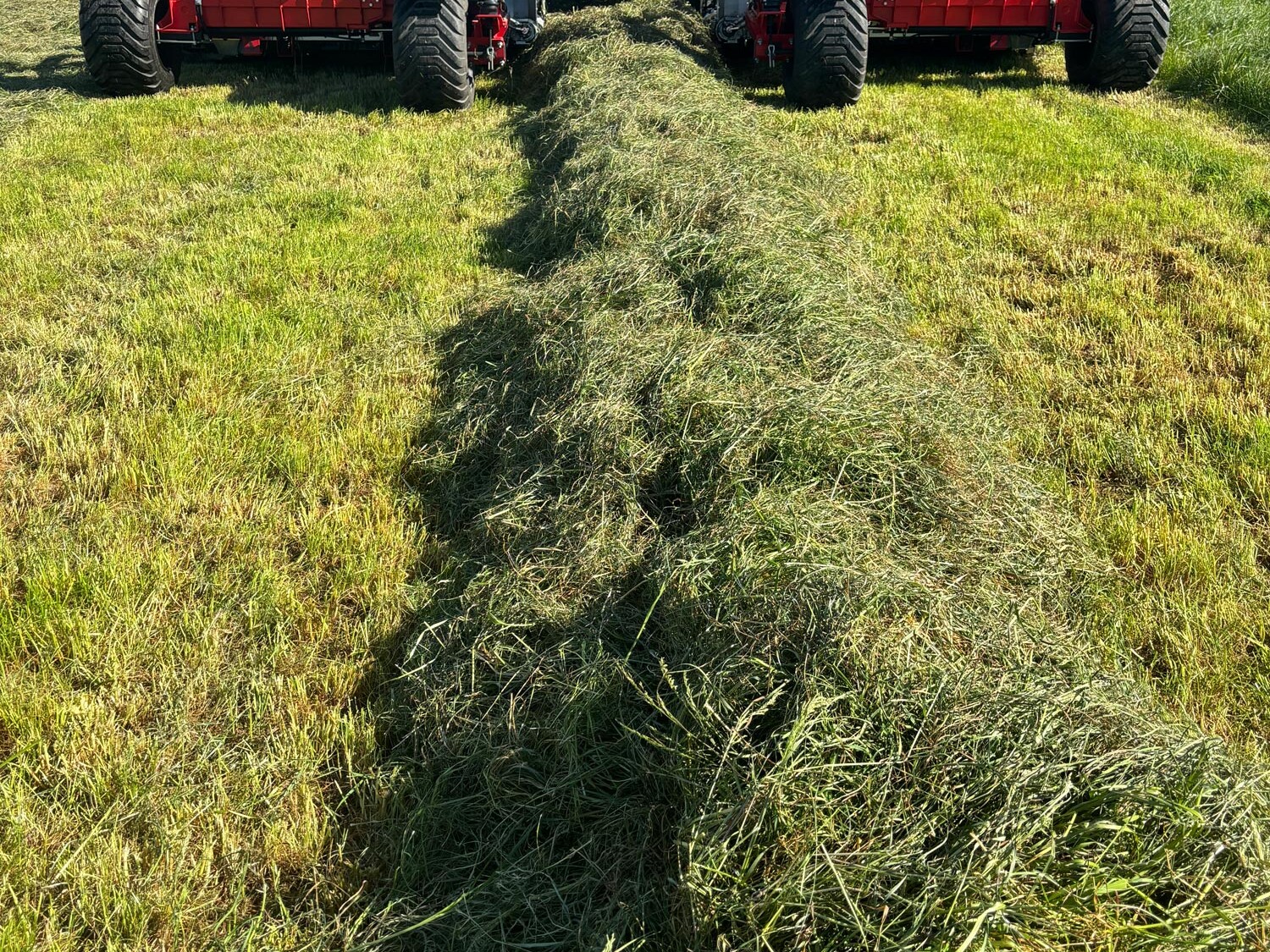

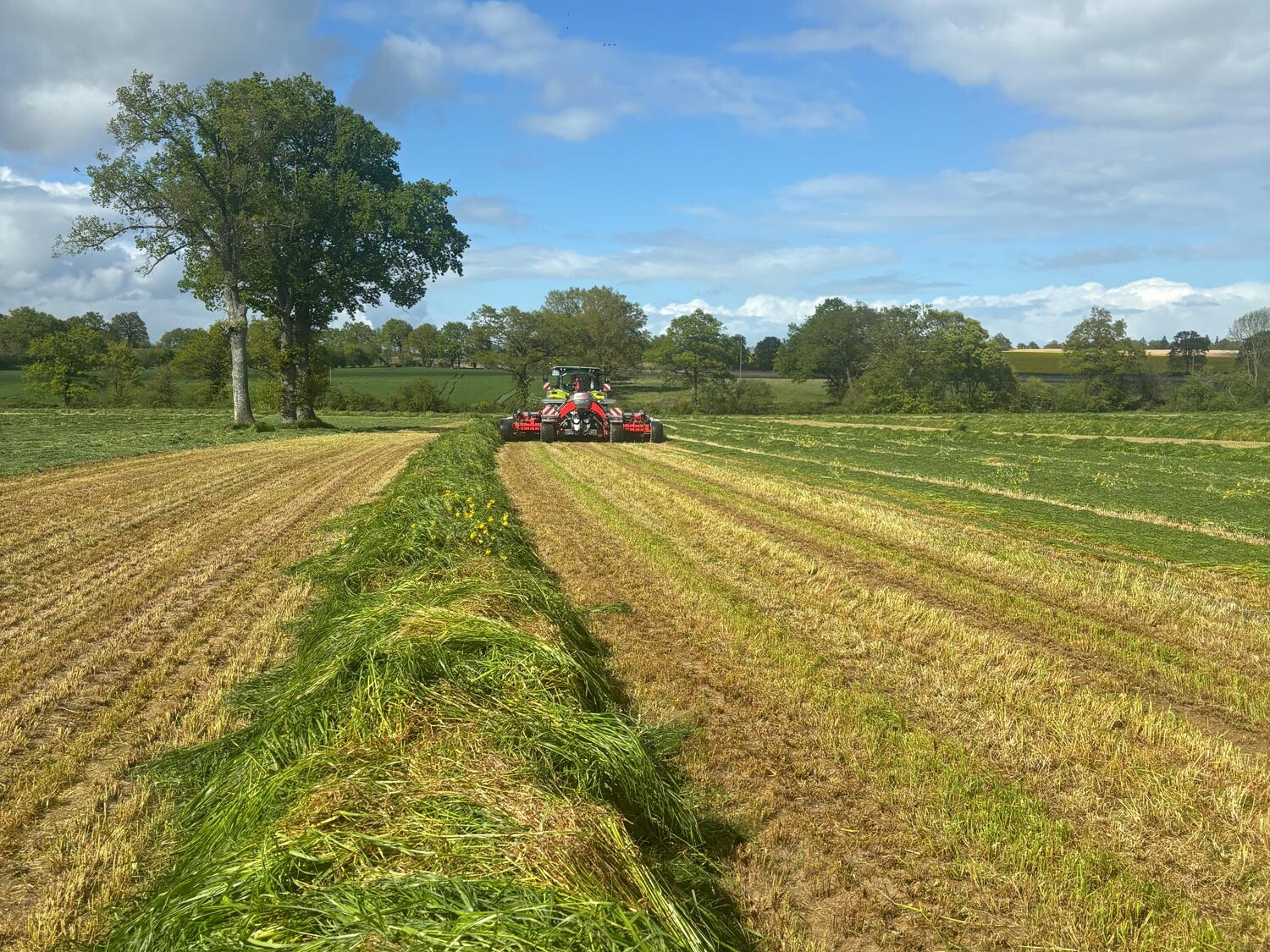

Cleanest feed with the RESPIRO R8 compact

Versatility

RESPIRO R8 compact

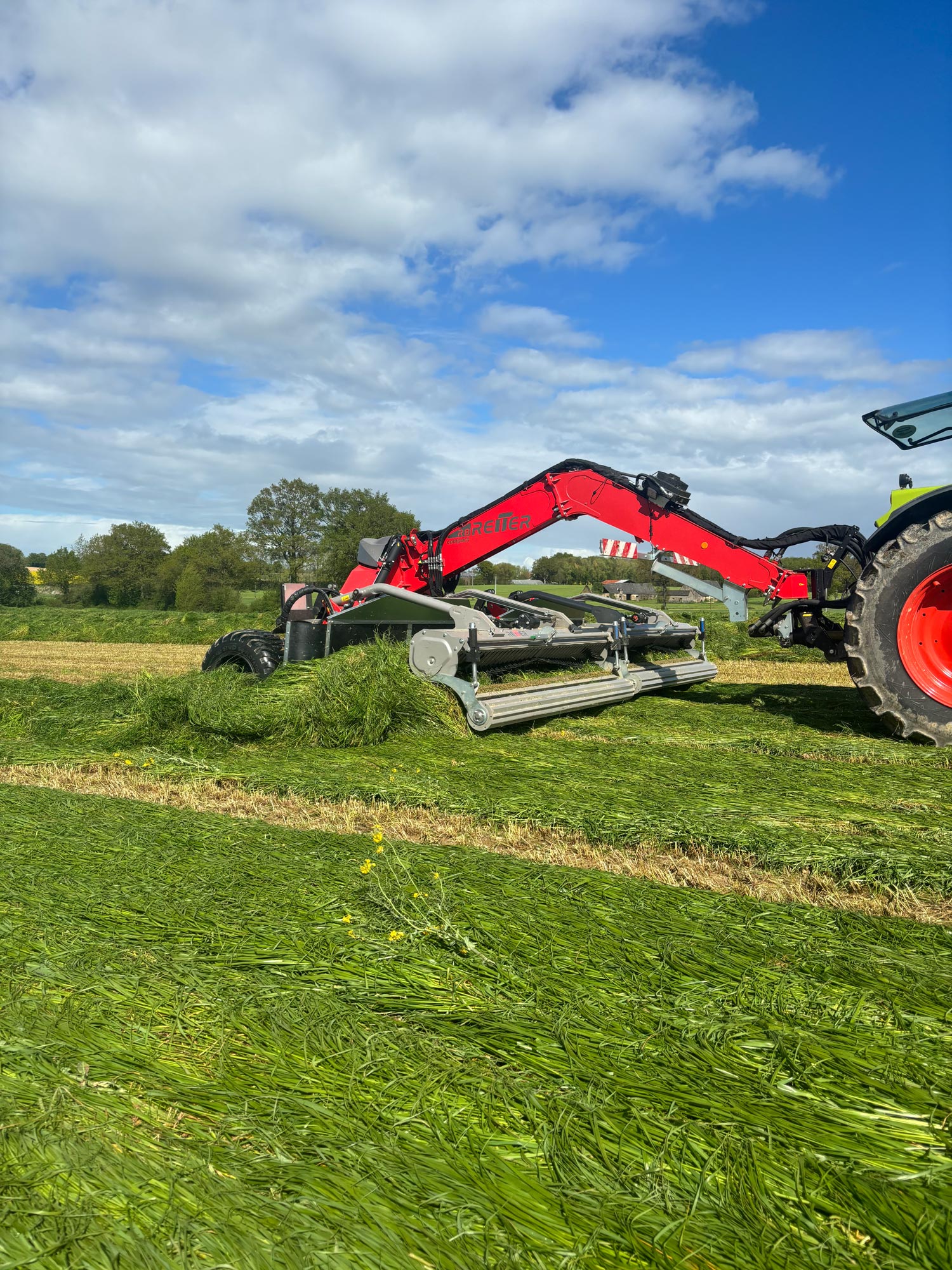

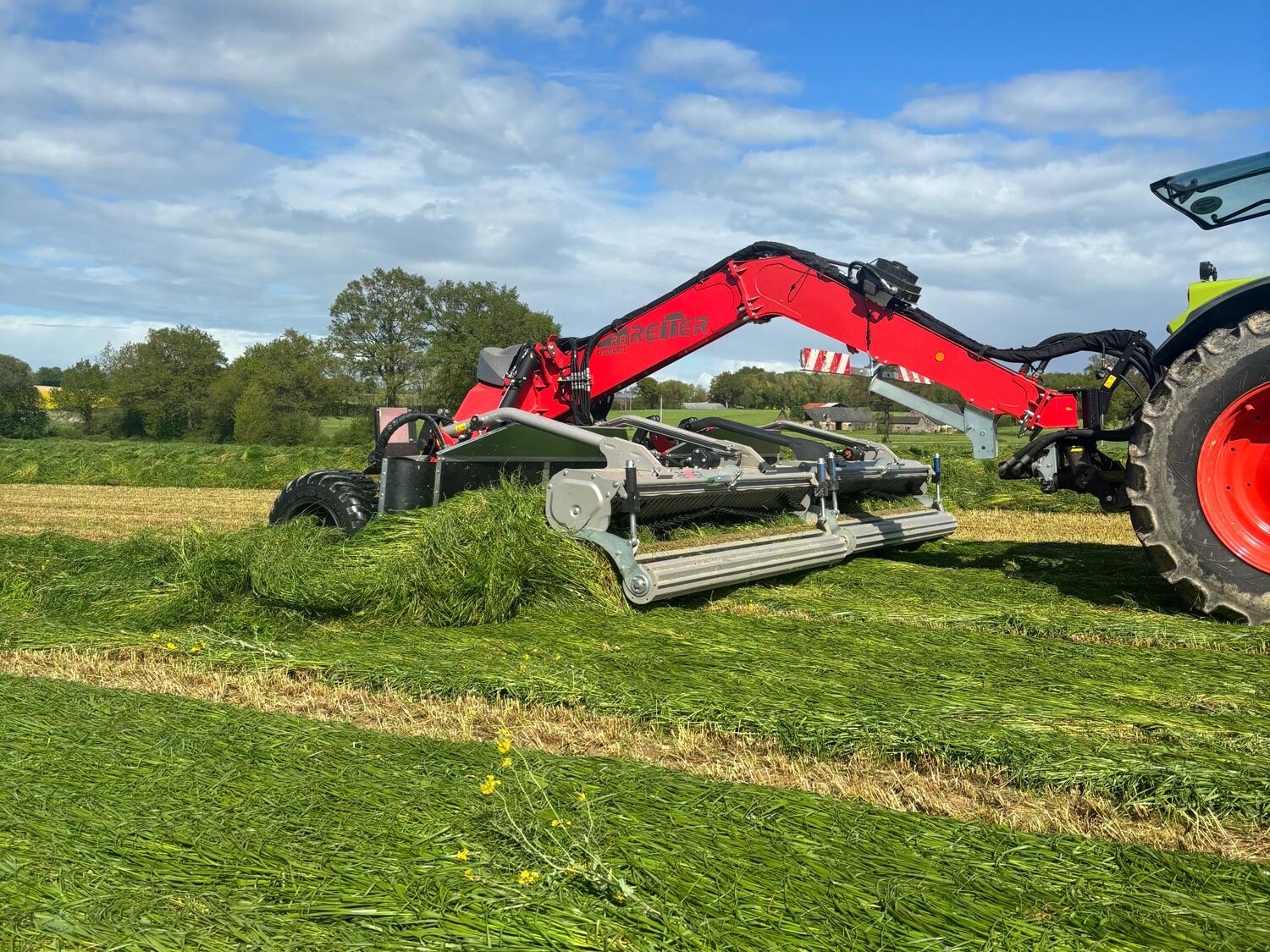

The RESPIRO R8 compact belt rake is very flexible in use, whether in silage, forage, dry hay or for turning straw.

Different working conditions

Grassland

Green rye

Alfalfa hay

Straw

Rape straw

Maize straw

Clover grass

Hay

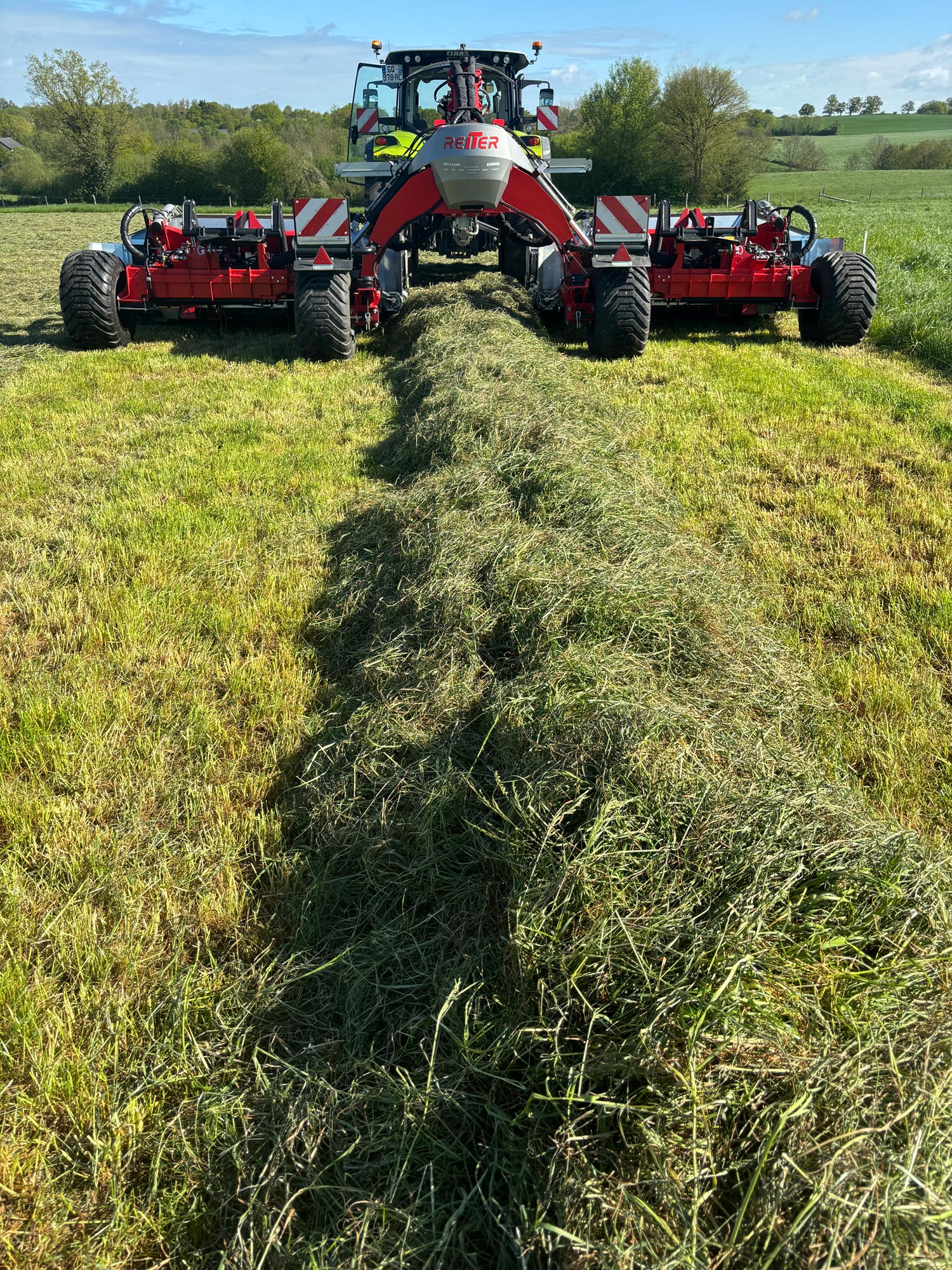

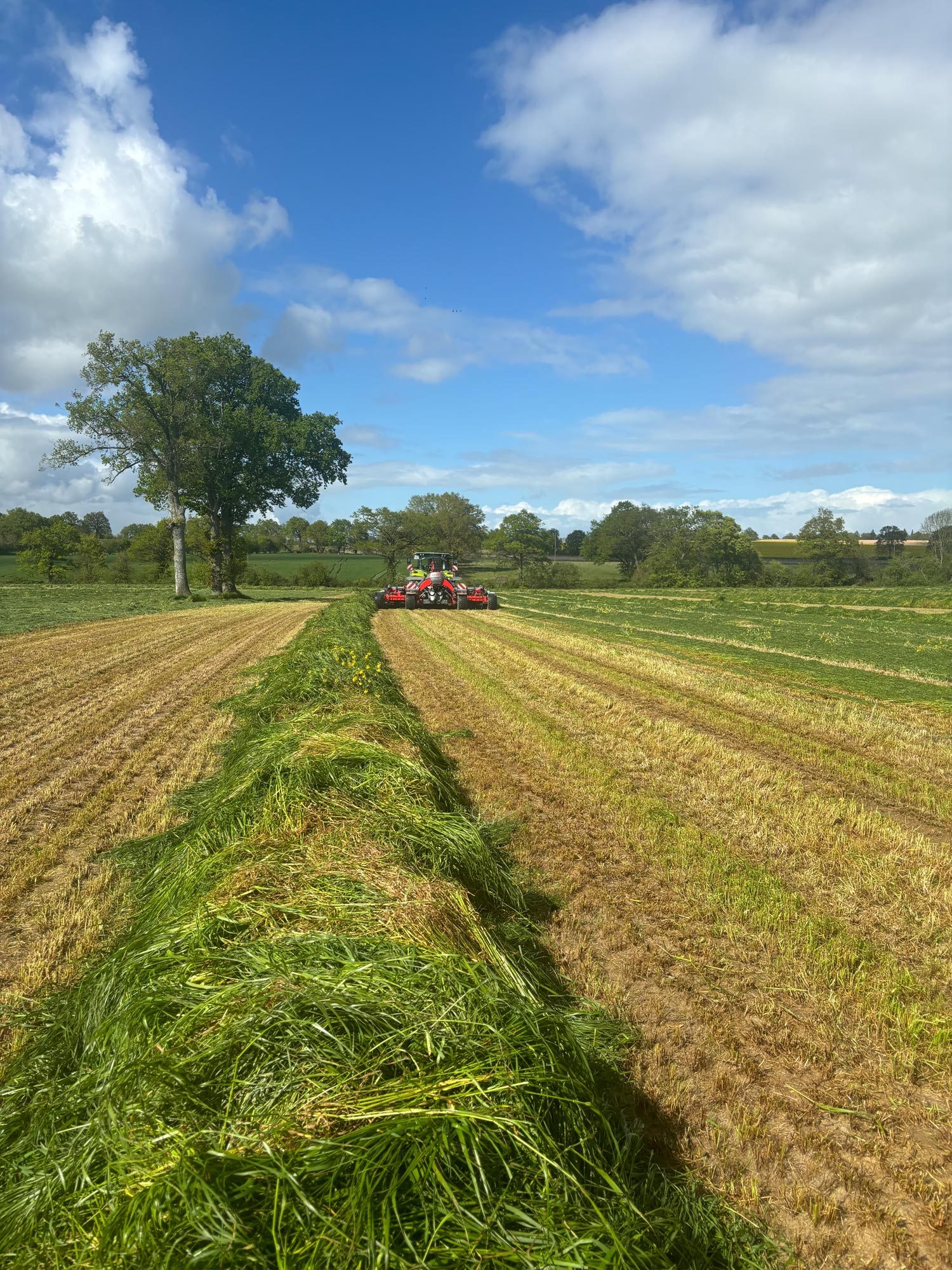

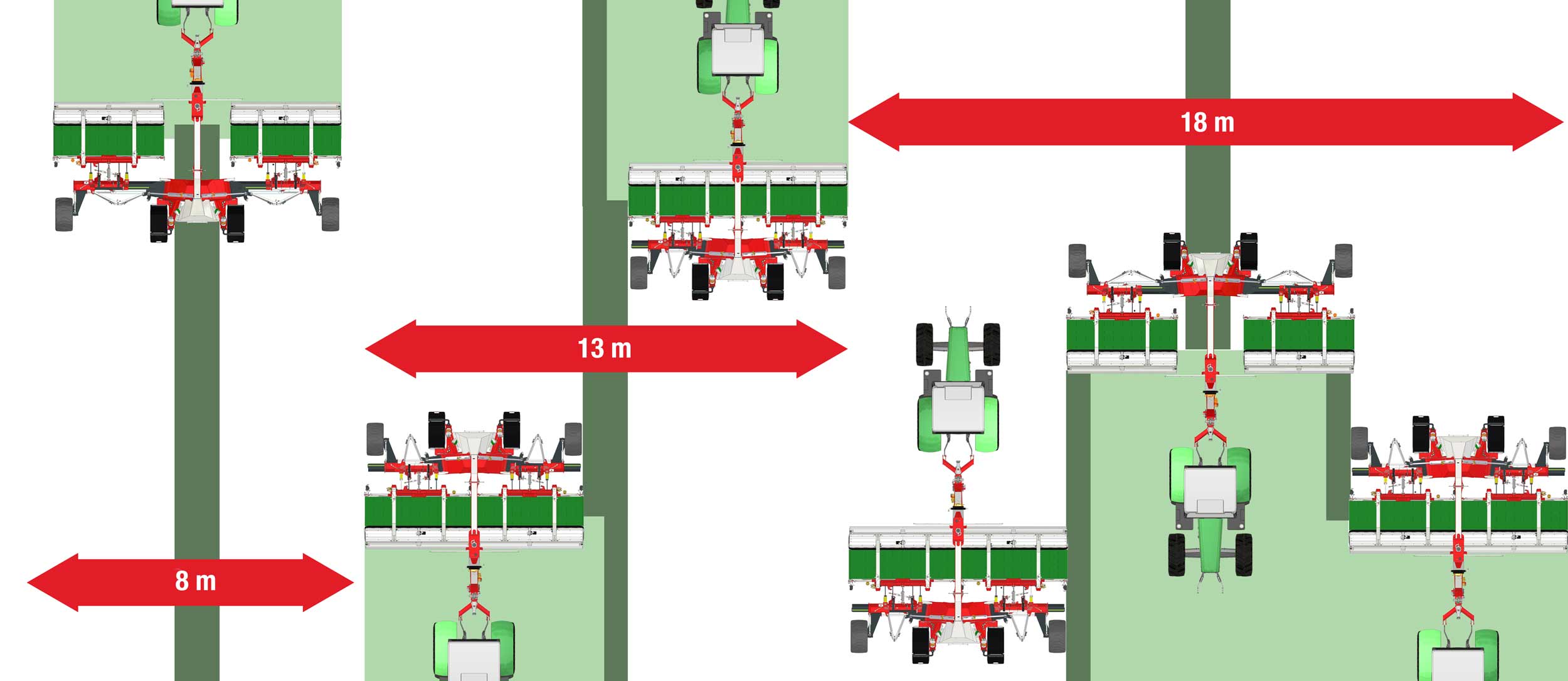

Possibilities of swath placement

Technology,that pays off.

The path to the future requires a fundamental rethink from sweeping to lifting. RESPIRO-Belt rakes are revolutionary in their features. The elastic, camless pick-up with small diameter, in combination with the dragging tines and the conveyor rotor, delivers excellent results.

Would you like to find out more about the pioneering RESPIRO technology?

Technology in detail

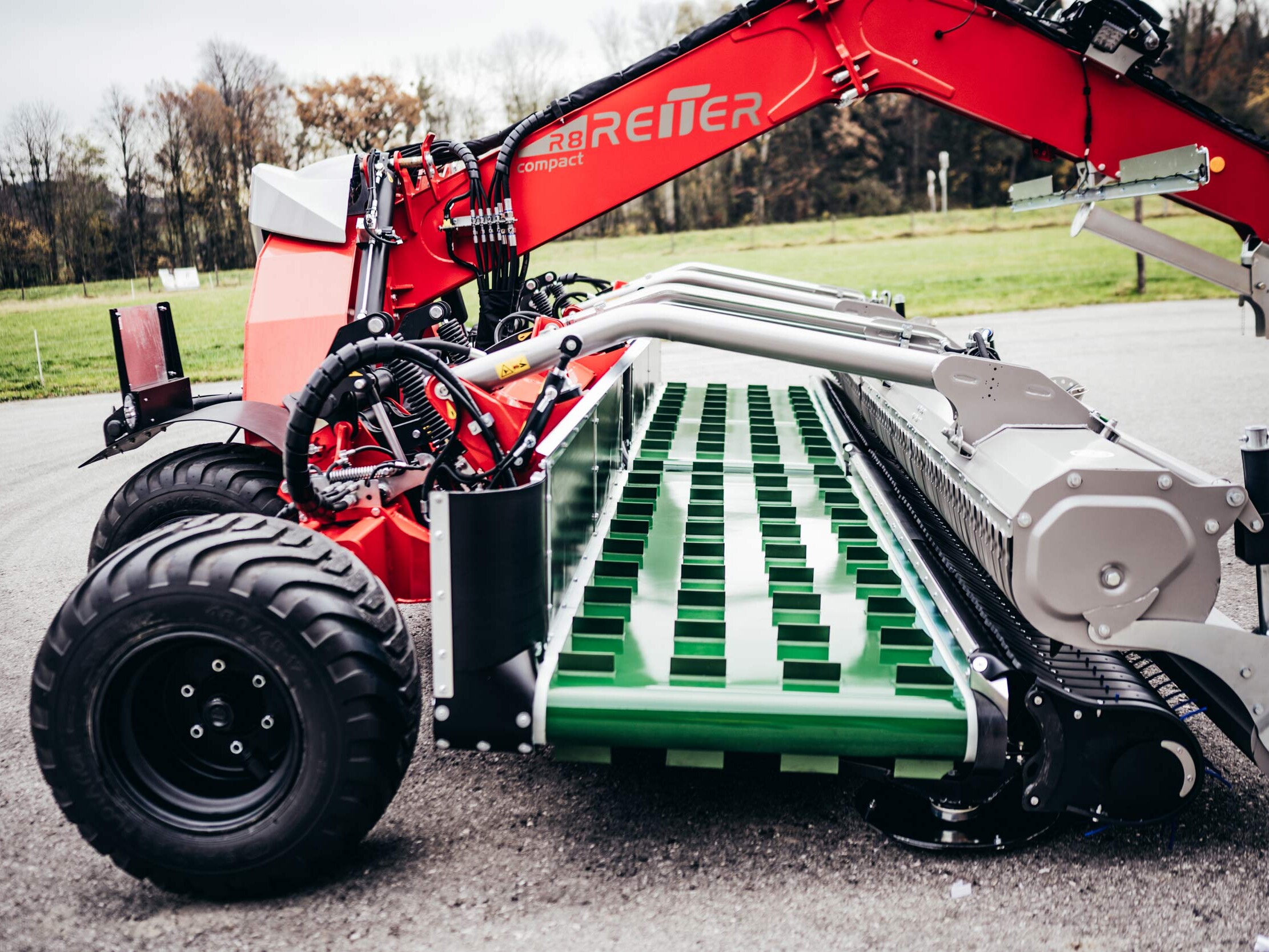

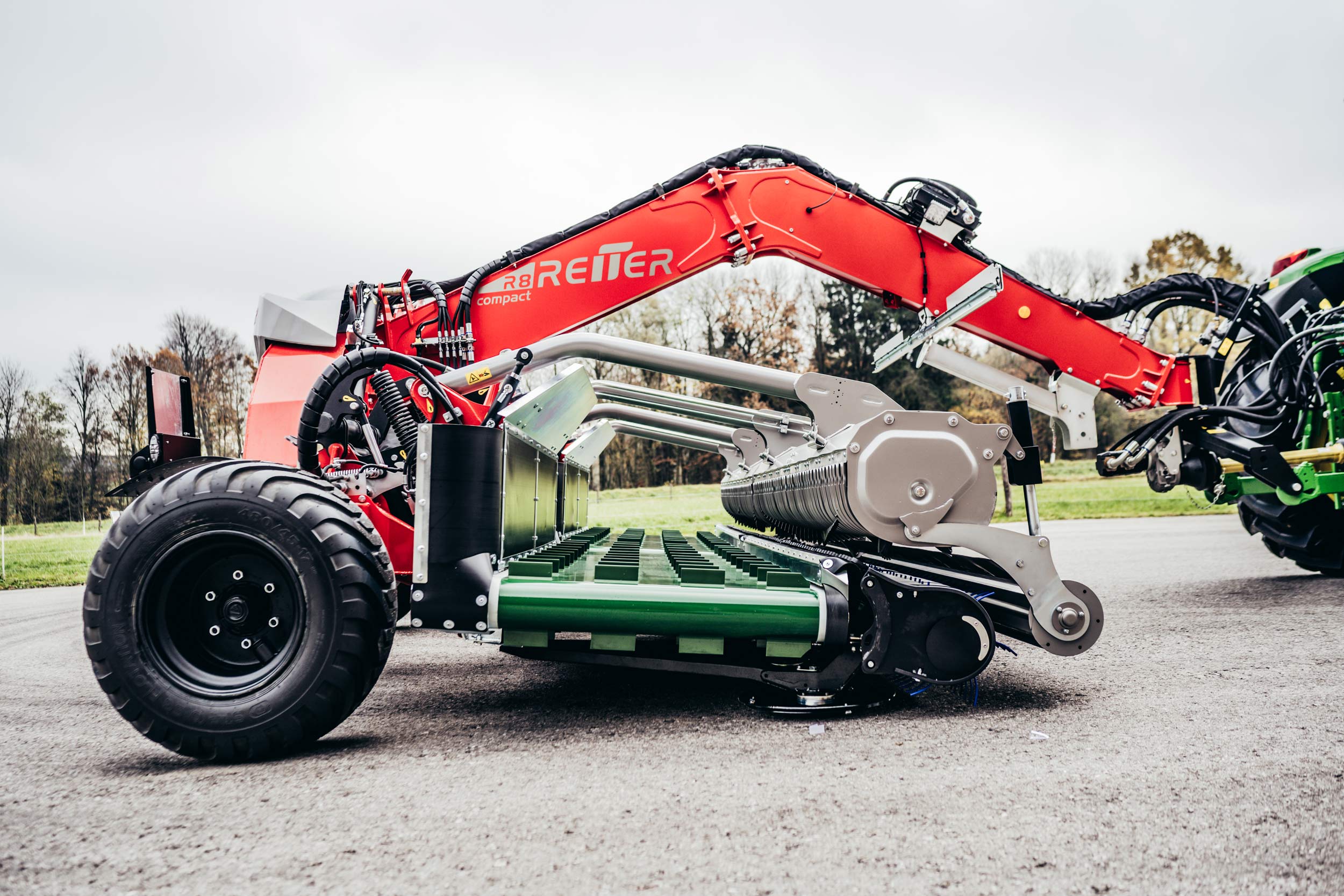

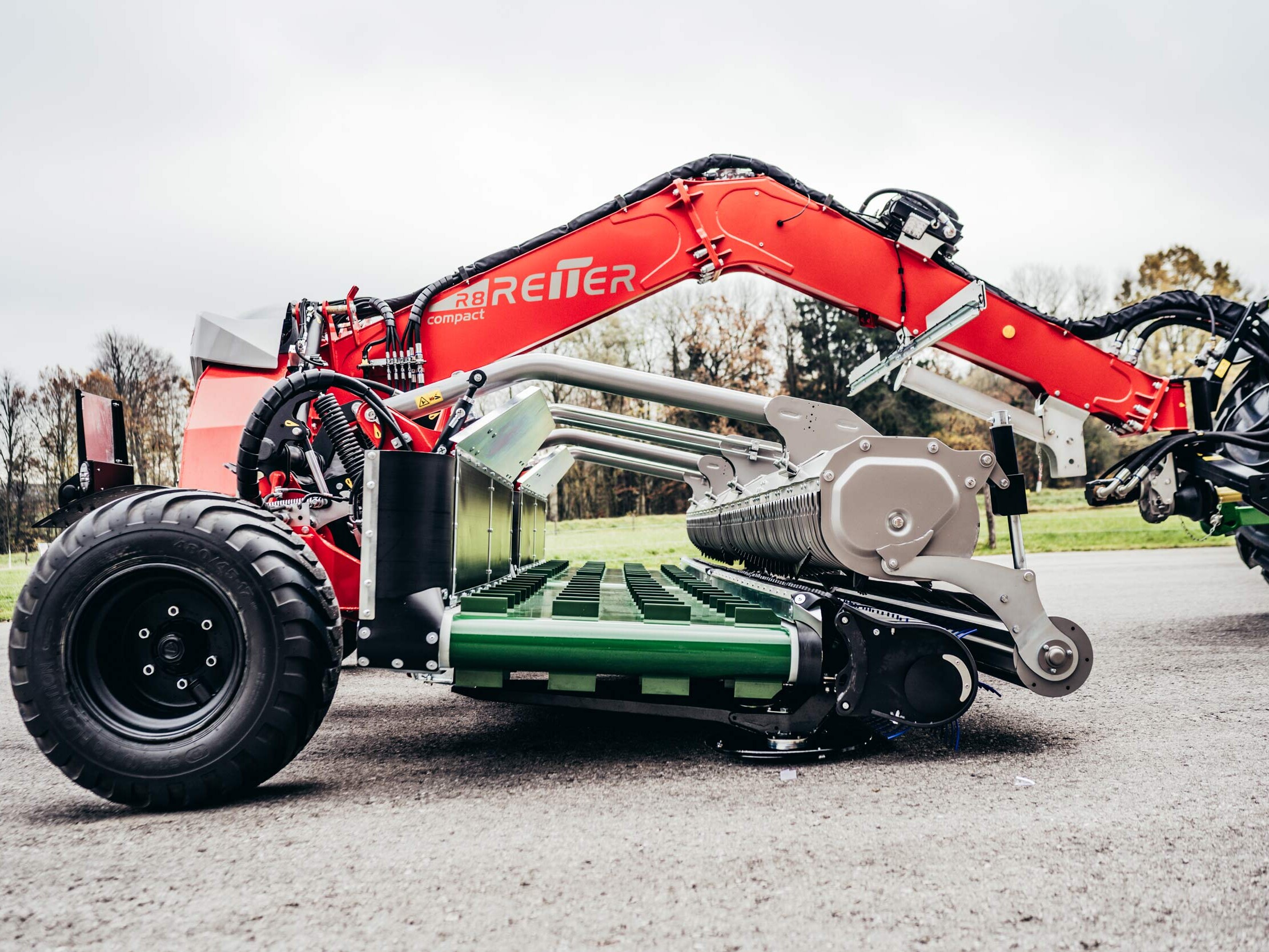

Elastic pick-up

Best soil adaptation

  • Best raking quality
  • No aggressive ground contact
  • Less wear on the tines
  • Few tine breaks
cleanest forage
More Details

Small diameter

Gentle and durable

  • Small distance between the tine tips
  • Low tine impact speed
  • Powerful even with short feed
  • Underruns large swaths
  • Enables the dragging tine
More Details

Trailing tine geometry

Gentle and durable

  • No aggressive ground contact possible
  • Stones and foreign substances remain in place
  • Less wear and breakage on the tines
  • Additional gentle ground adjustment
  • Slurry particles remain on the ground
RESPIRO Bandschwader Modell der schleppenden Zinkengeometrie
More Details

Uncontrolled pick-up

maintenance-free

  • Enables small diameter
  • Radically simply built
  • Significantly fewer components – no cam track
  • Axially completely backlash-free
  • Centre drive with 2 double bearings
Reiter RESPIRO: ungesteuerte Pick-Up
More Details

Anti-Loss-System

No loose tines

  • Unique tine attachment
  • Tine winding is supported from the inside
  • Tines broken in the winding are not lost
Reiter RESPIRO Bandschwader: einzigartiges Anti-Loss-System
More Details

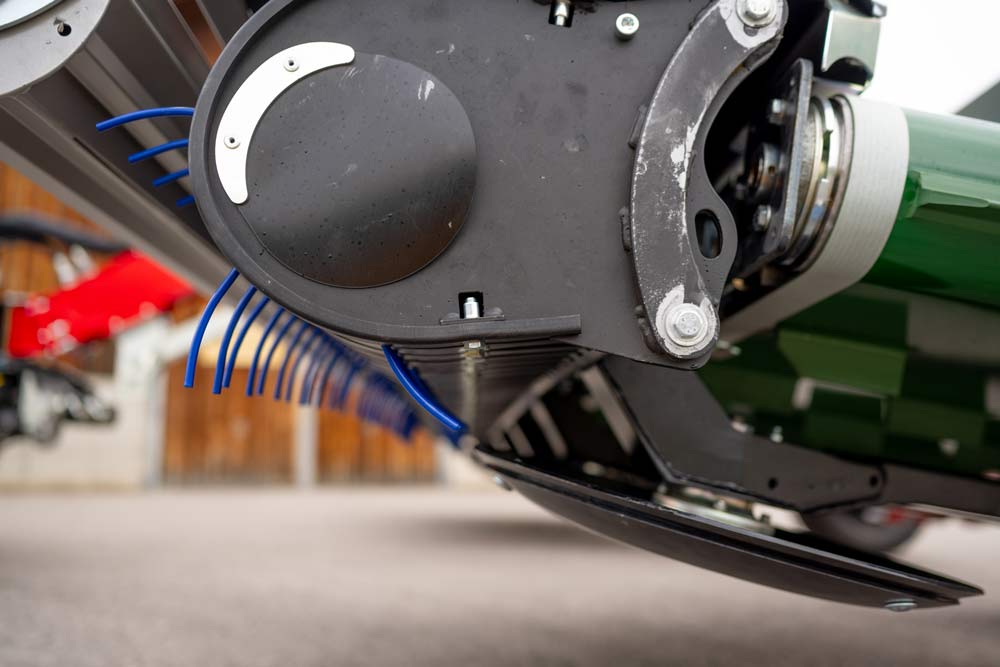

Sliding disc close to the tine

Best tine guidance

  • Free turning
  • Large contact surface
  • Optional: Robalon sliding disc
More Details

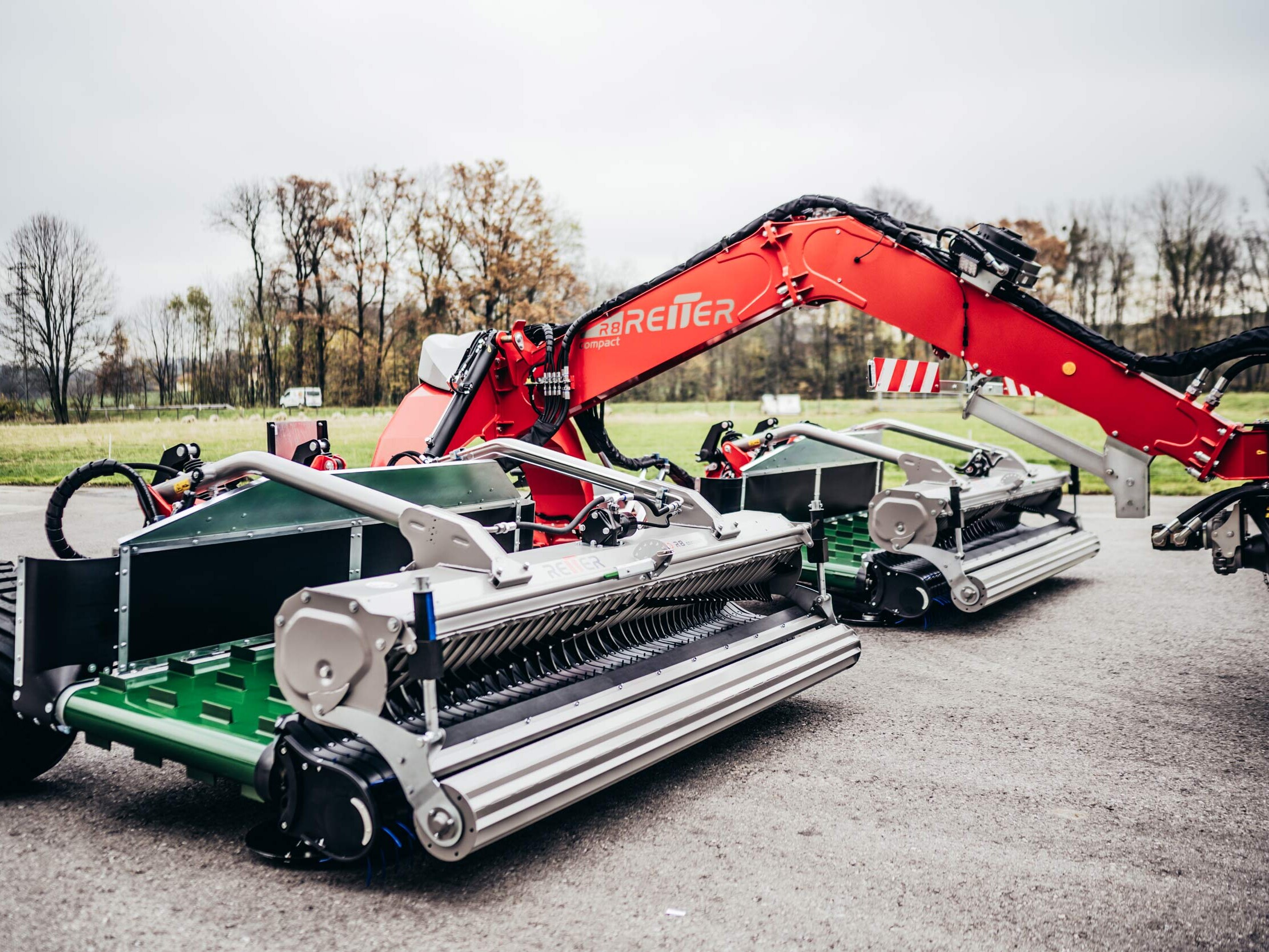

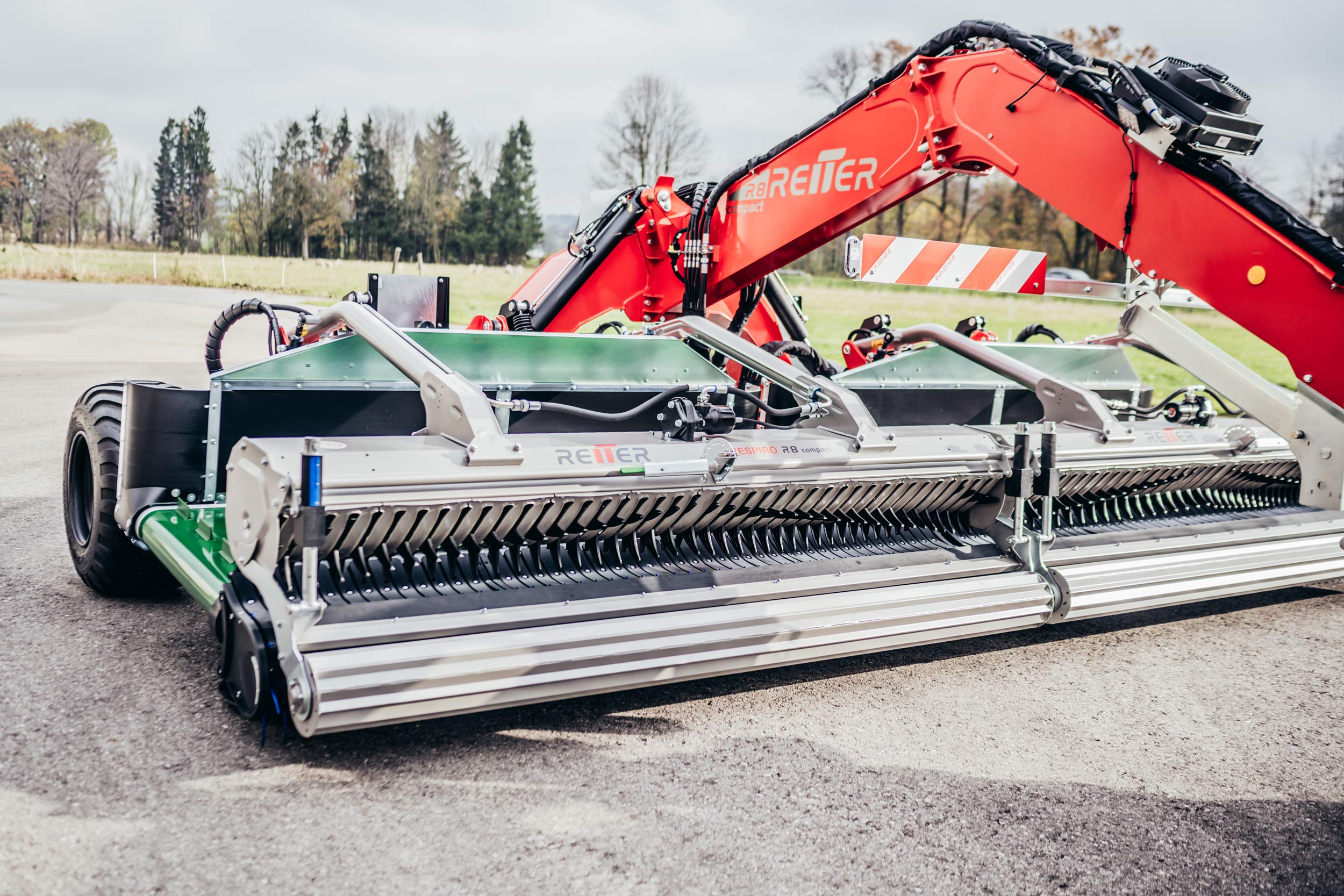

Conveyor rotor & swath roller

Consistent good flow

  • Ensures constant good flow
  • Conveyor rotor hydraulically relieved and adjustable in height
  • Swath roller guides the crop flow at the pick-up
Reiter RESPIRO: Förderrotor
More Details

Technical details

RESPIRO R8 compact

Data sheet R8 compact

RESPIRO R8 compact
Working width centre swath [m] 6,50 – 8,00
Swath width [m] 0,50 – 2,00
Working width side swath [m] 6.00 + swath
Bandwidth [mm] 1000
Transport length [m] 5,60
Transport width [m] 2,92
Transport height [m] 3,40
Weight [kg] 4400
Tyres 480/45-17
Area performance [ha/h] 3 – 8
PTO [U/min] [U/min] 540 / 750 / 1000
Required hydraulic connections 2 DW + LS
Required electrical connections ISOBUS, 7-pin
Brake DLB, hydraulic
