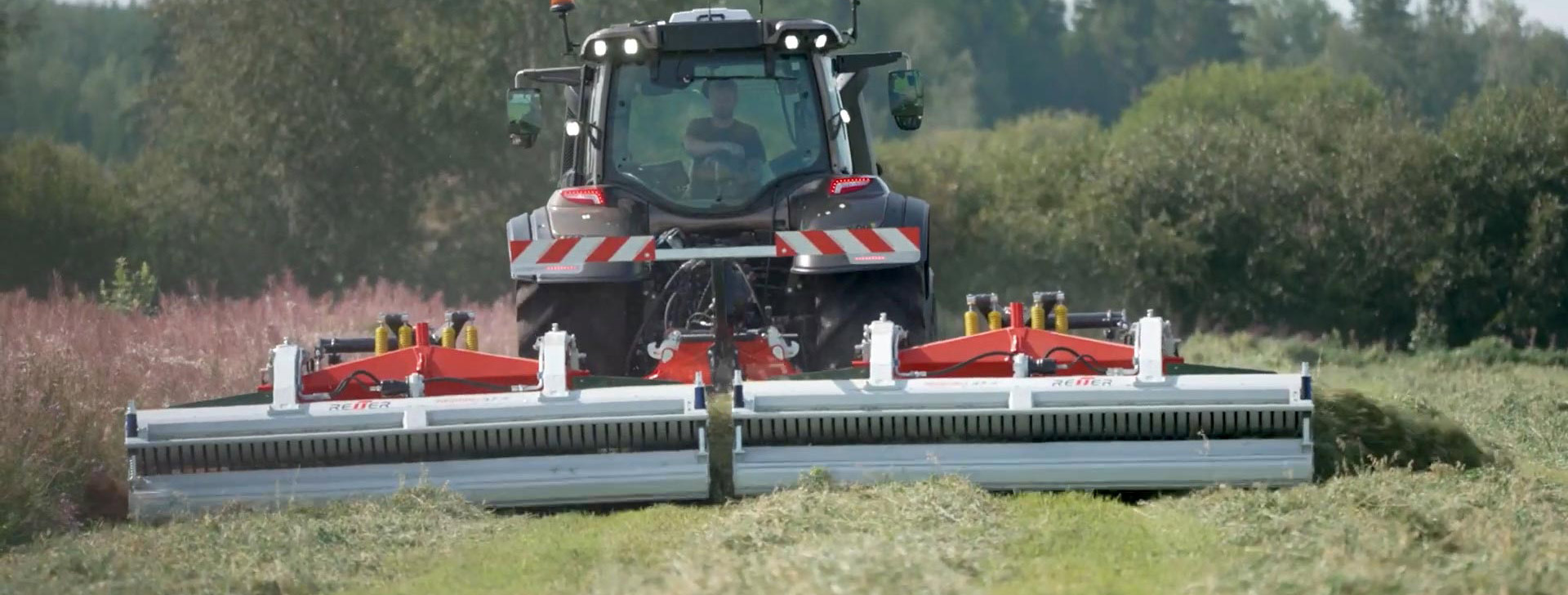

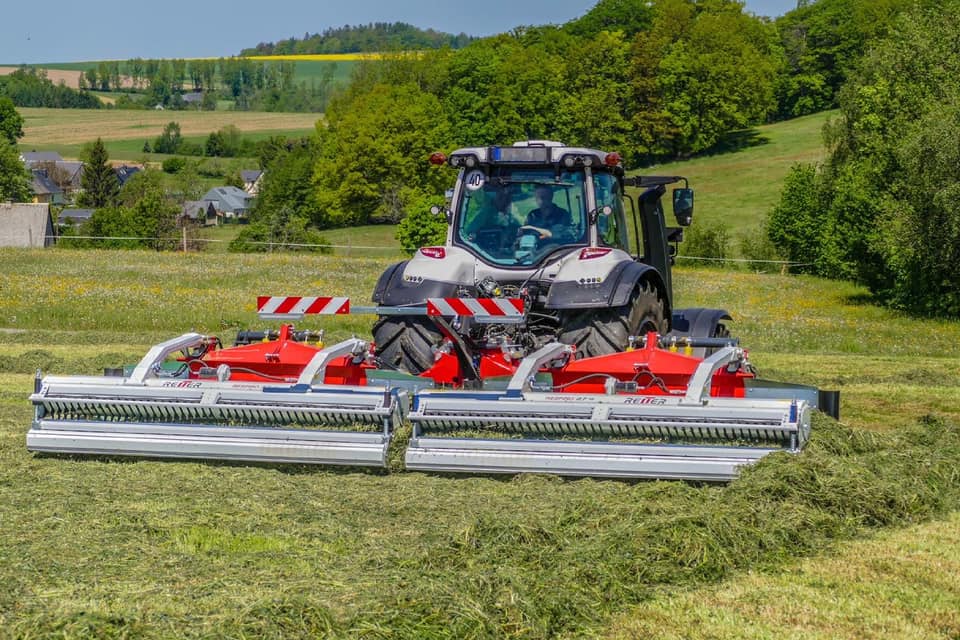

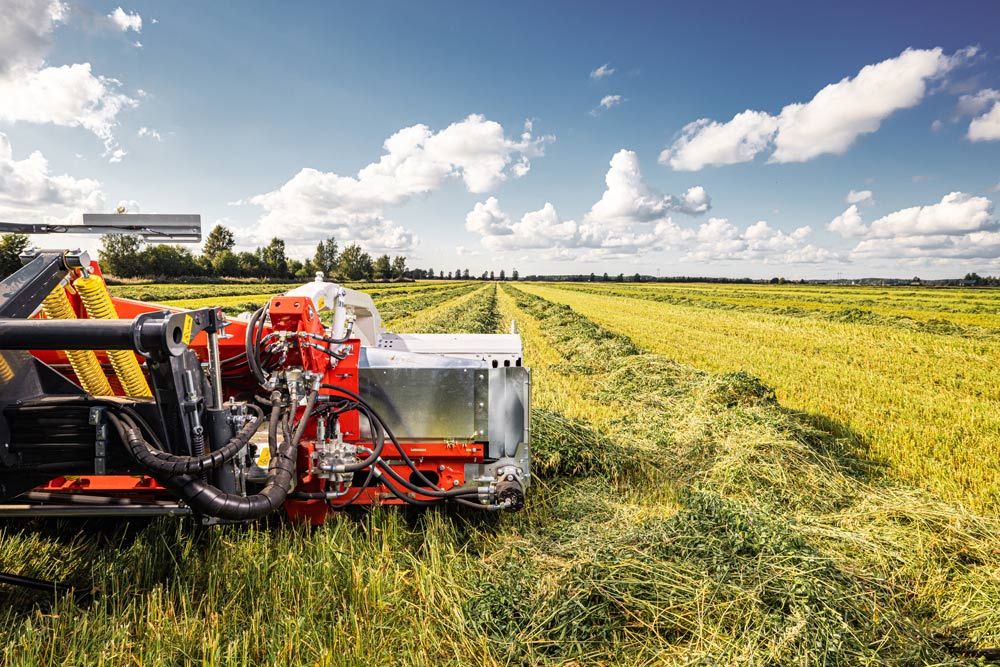

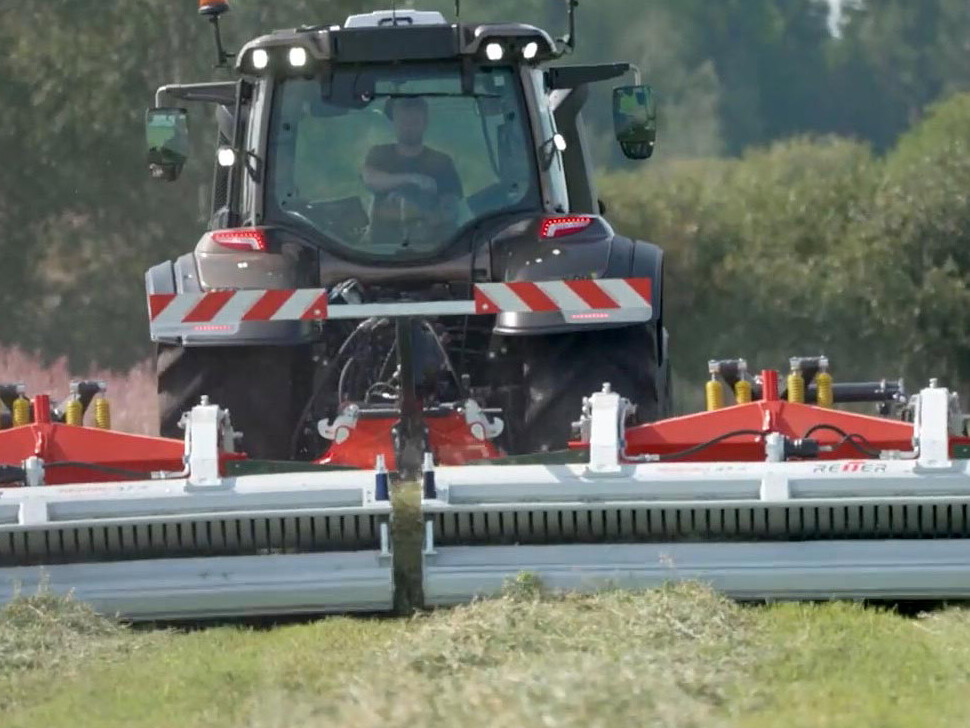

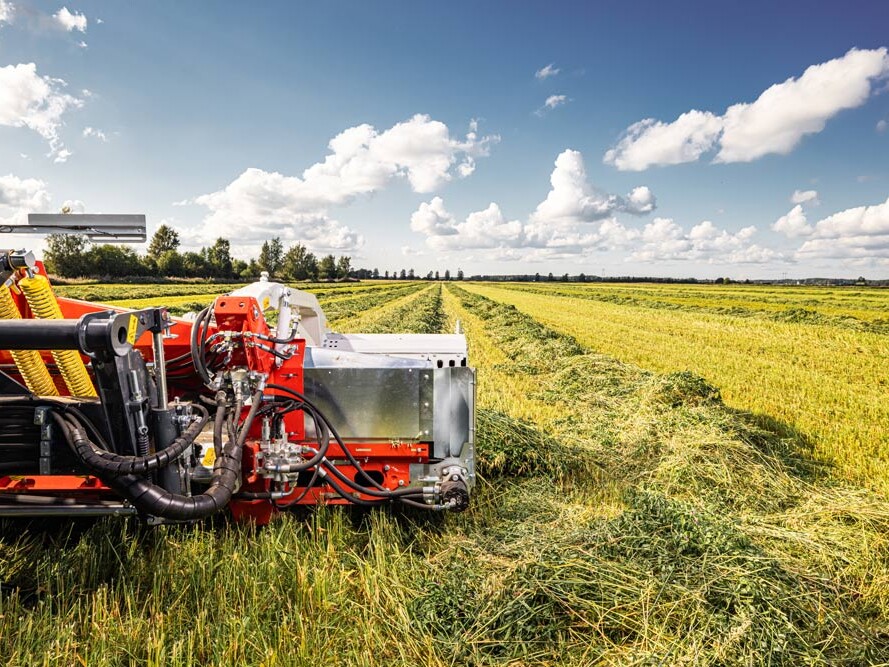

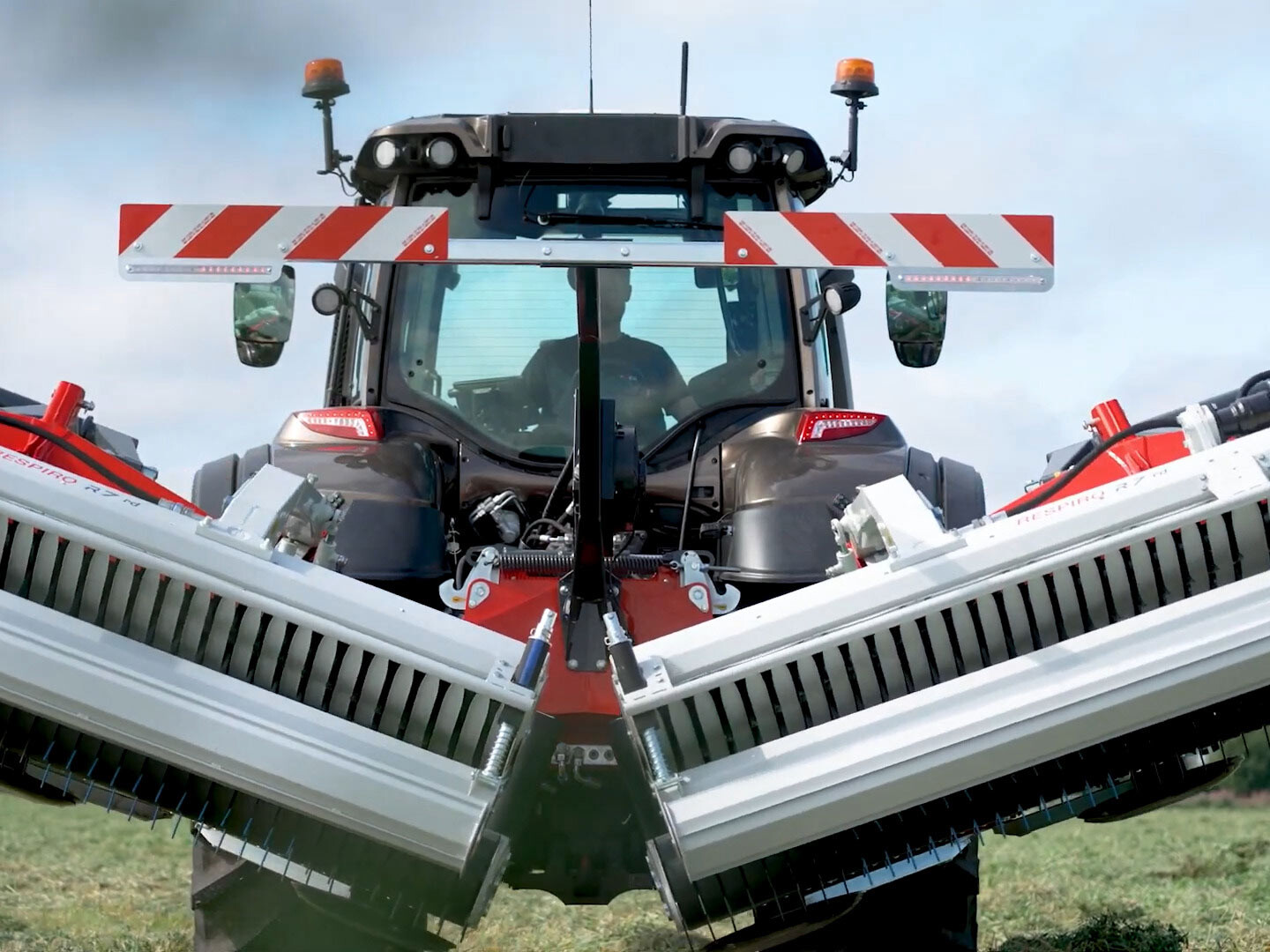

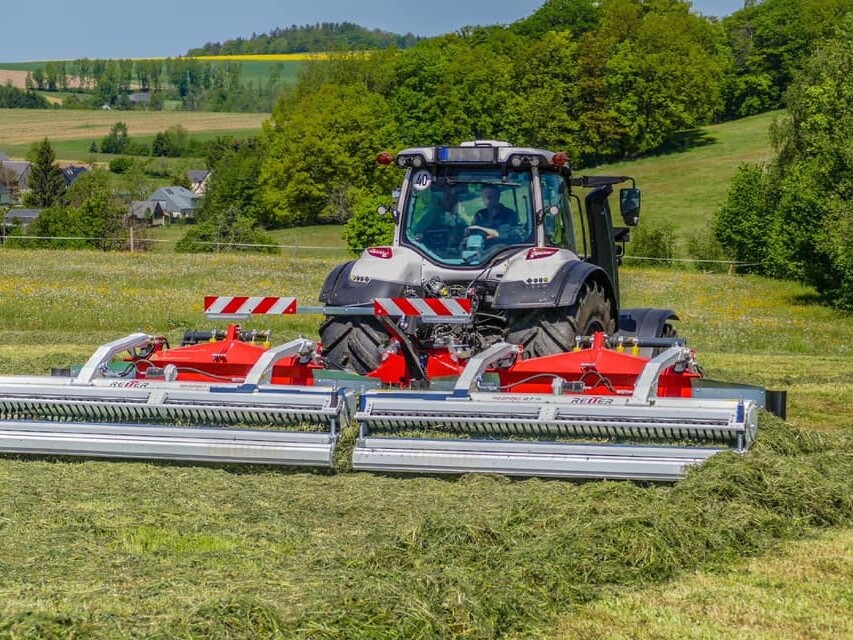

The new belt rake for tractors with reverse drive system.

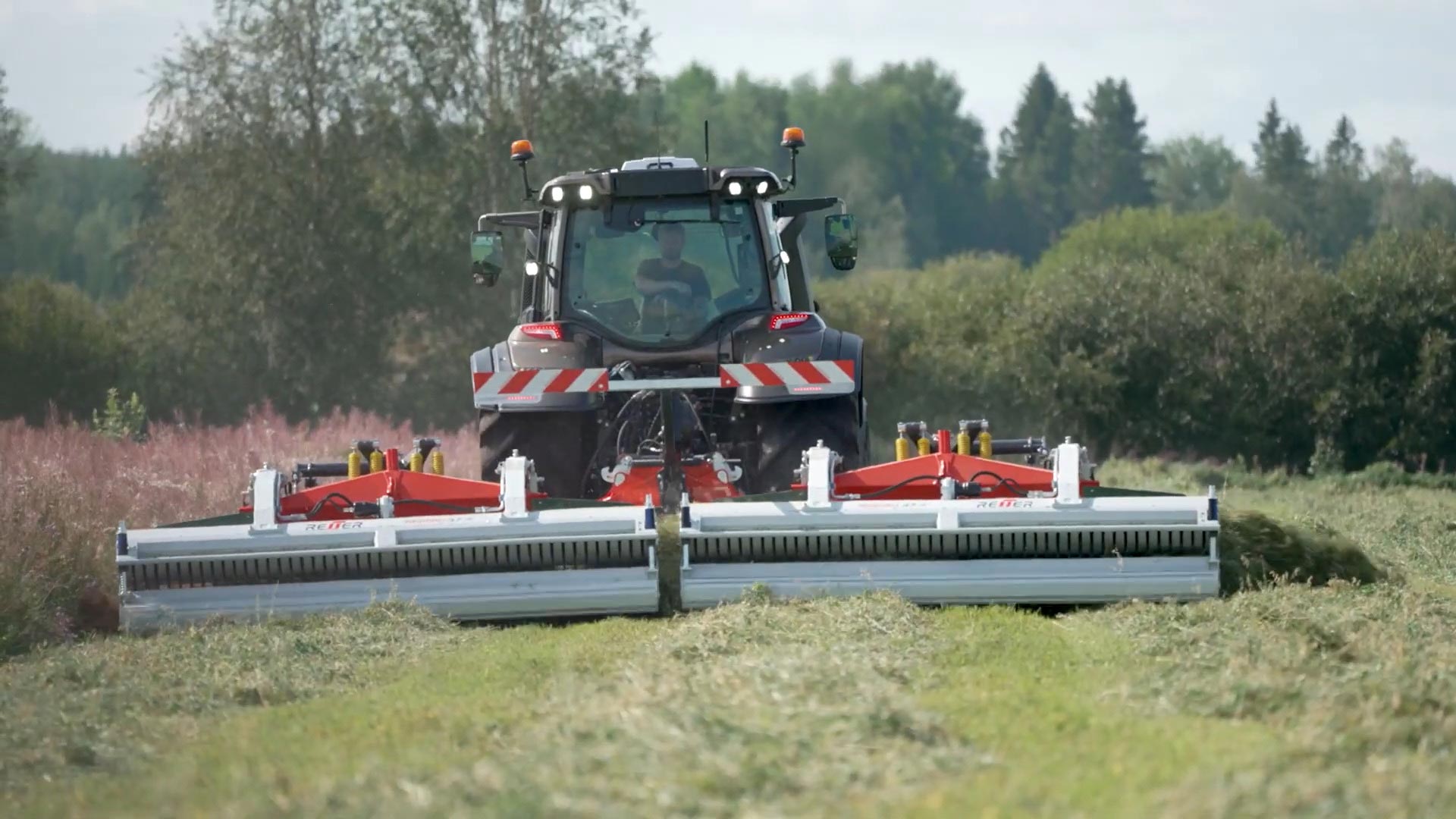

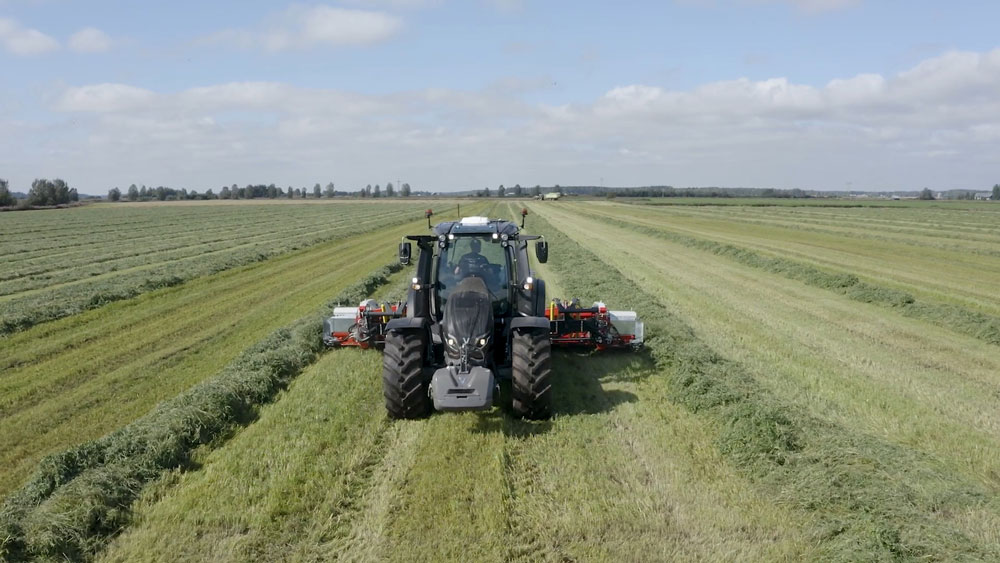

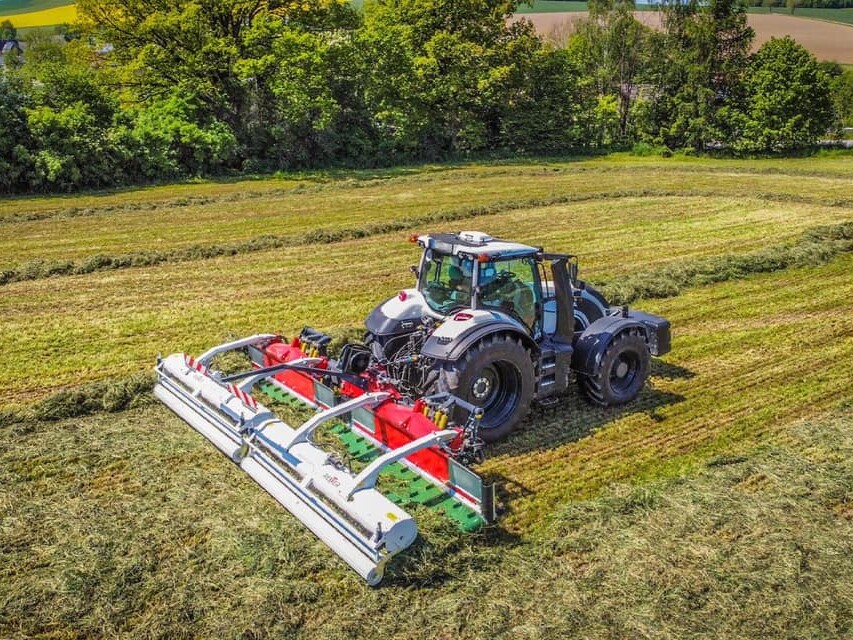

“Never drive over the forage again”

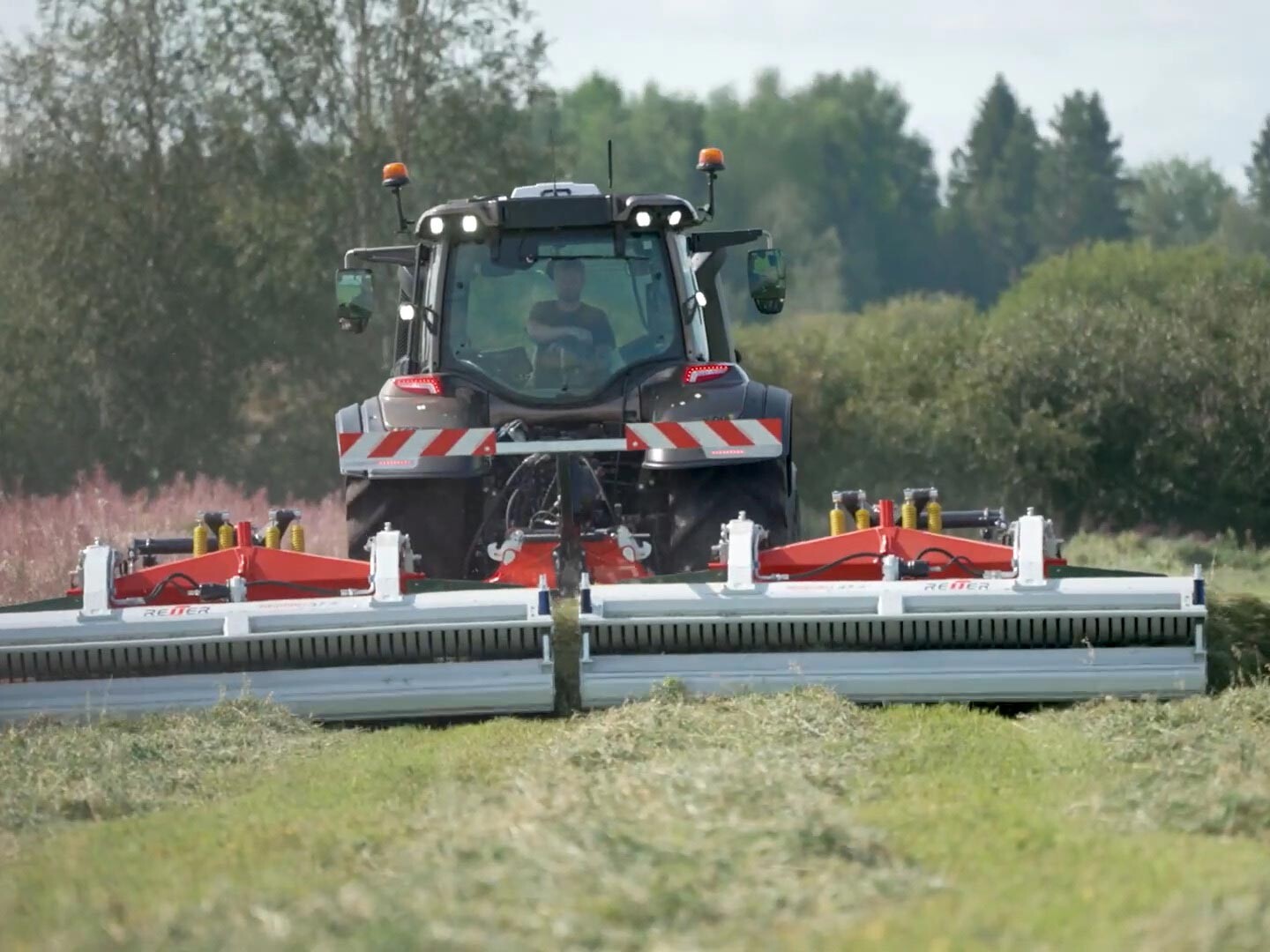

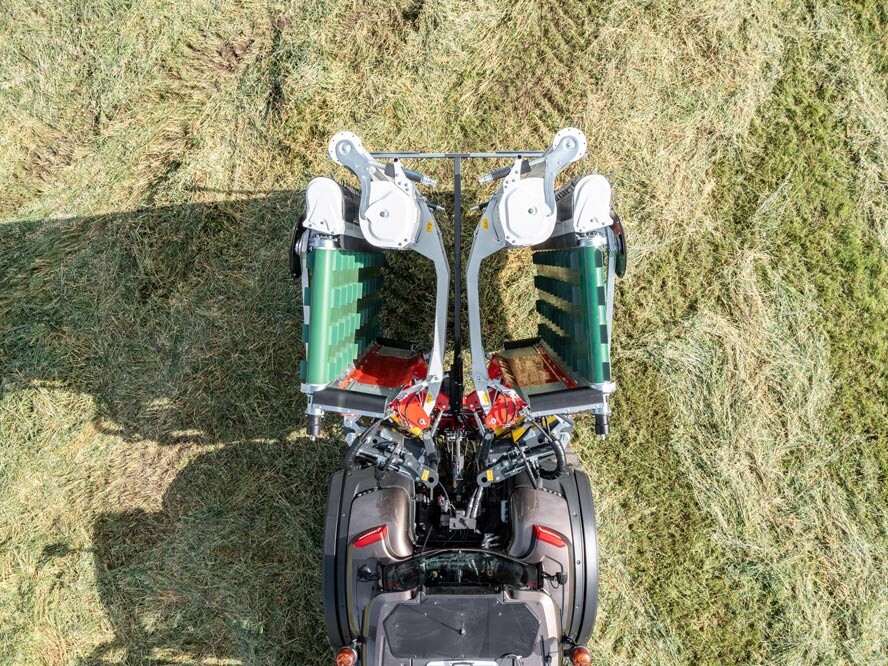

“Perfect view of the working units”

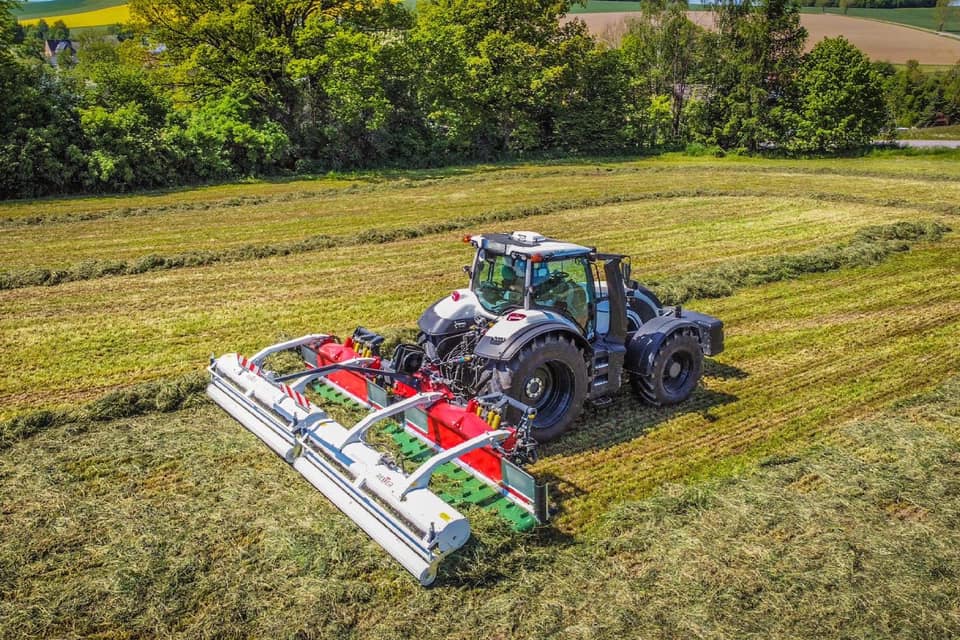

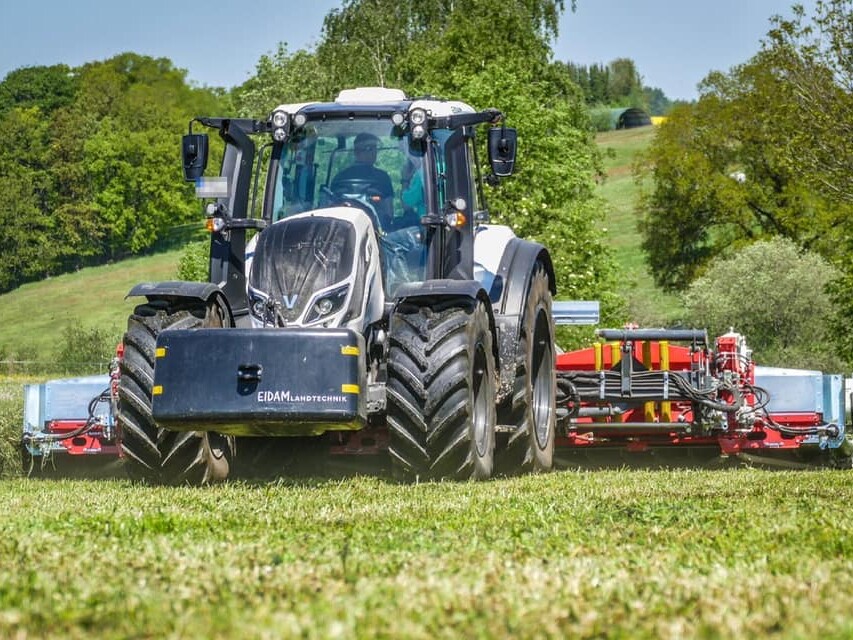

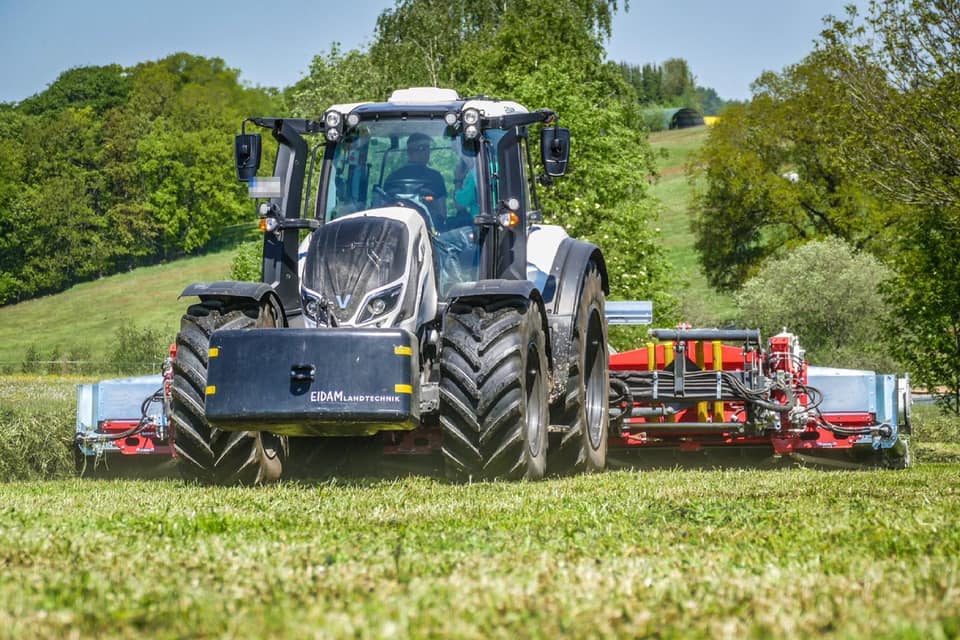

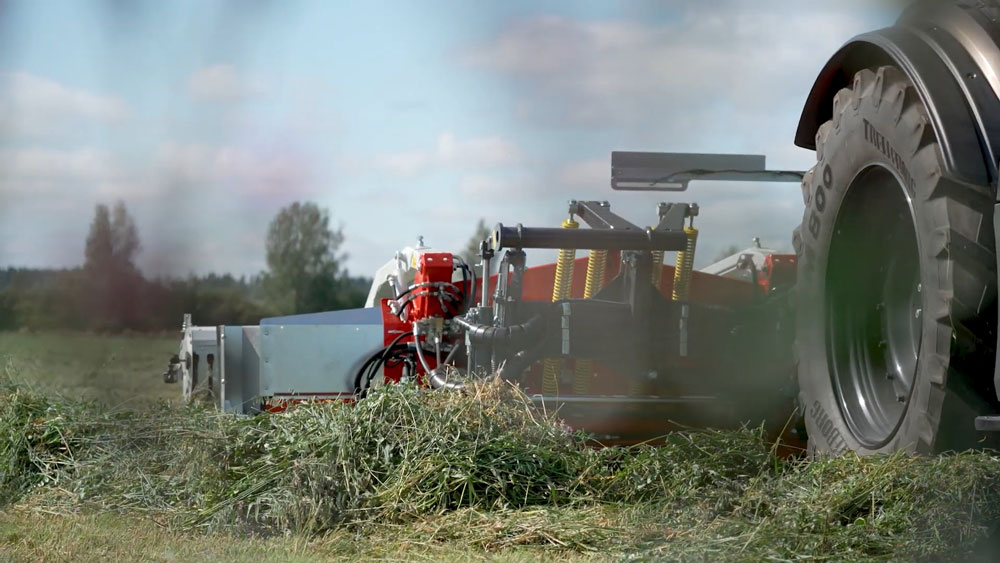

“As manoeuvrable as a self-propelled machine”

Arguments that convince the farmer and the contractor.

Request now
Master of flexibility

Versatility

RESPIRO R6 rd

RESPIRO R7 rd

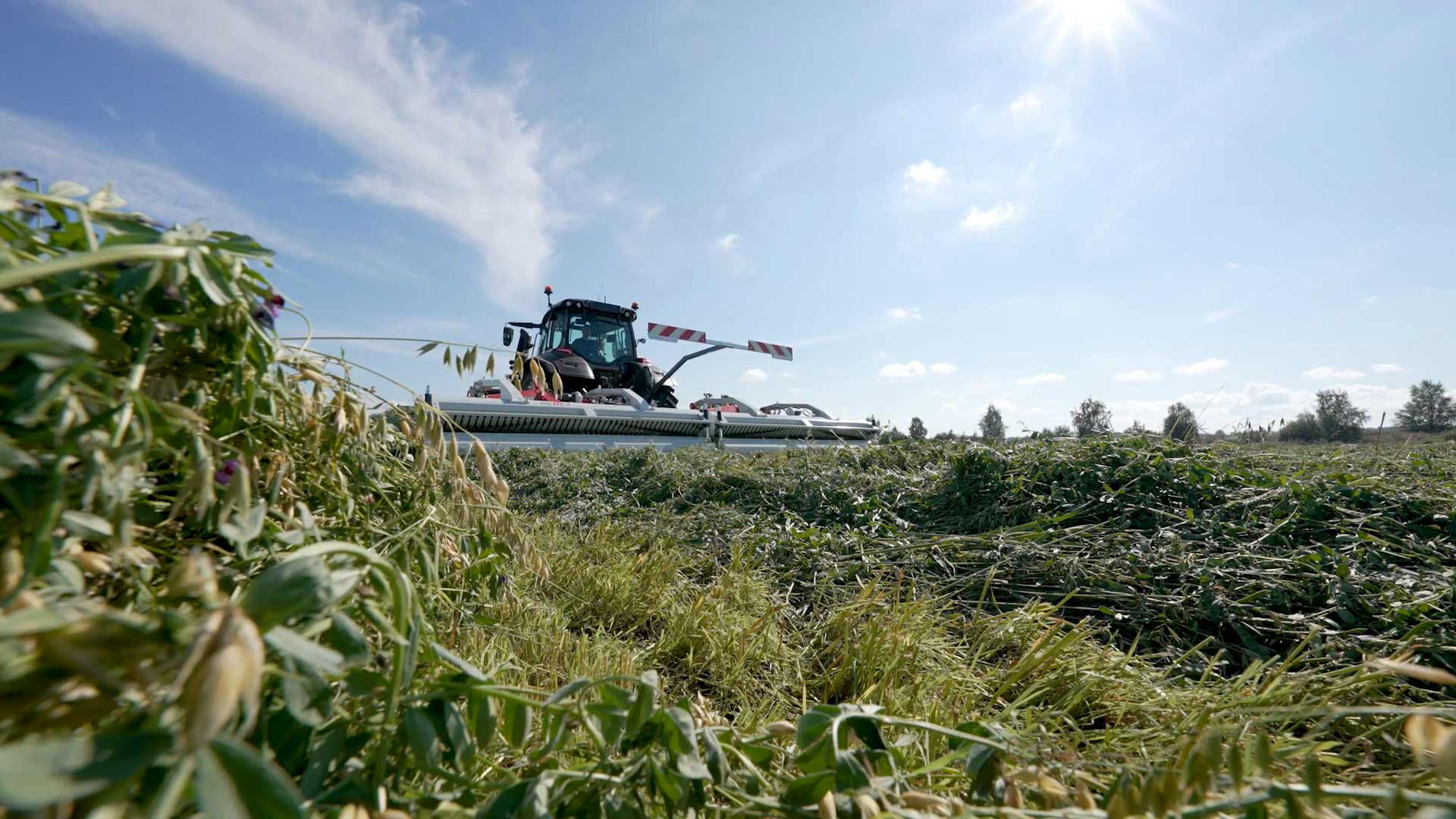

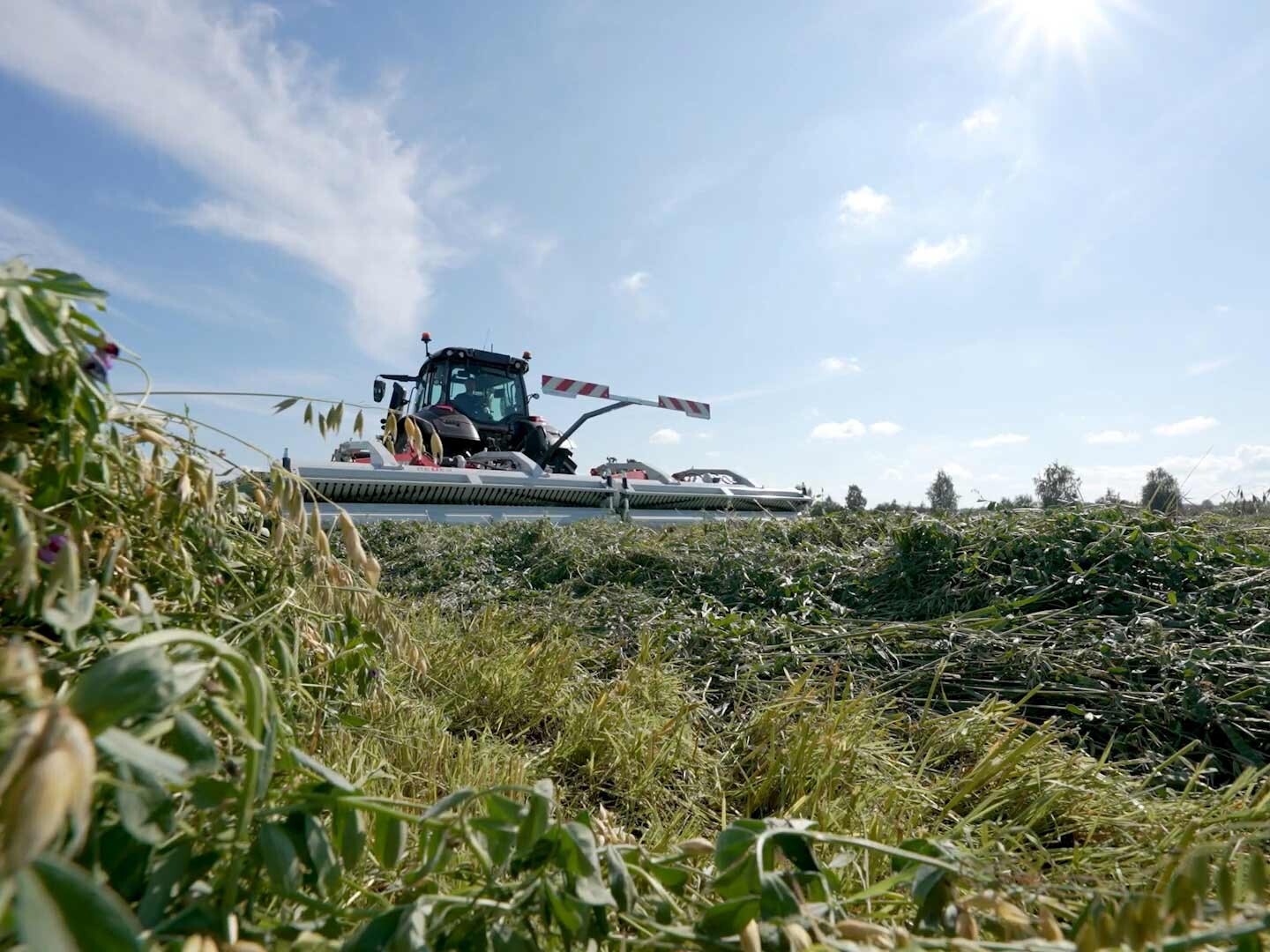

The RESPIRO push-drive belt rake is very flexible in use, whether in silage, massive forage, dry hay or for raking straw. In addition, field corners and areas with obstacles can be easily cleaned.

In order to be able to gather enough swath mass for the harvesting technique, lifting over swaths several times is no problem. Compared to conventional roundabout rake technology, there is no additional increase in forage contamination.

Translated with www.DeepL.com/Translator (free version)

Different working conditions

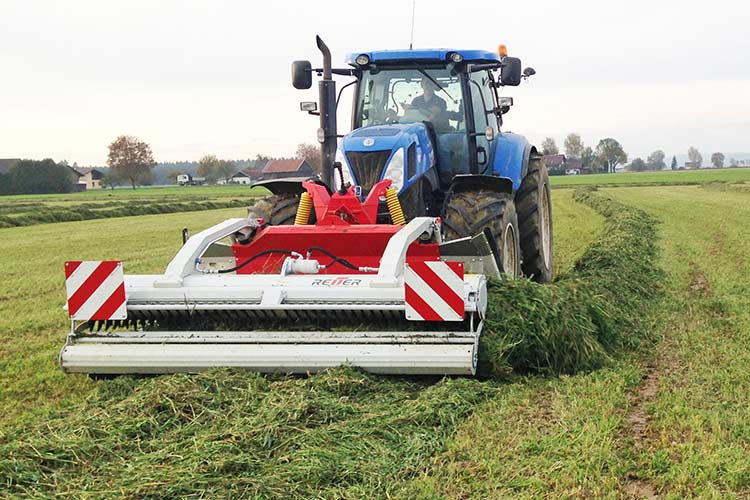

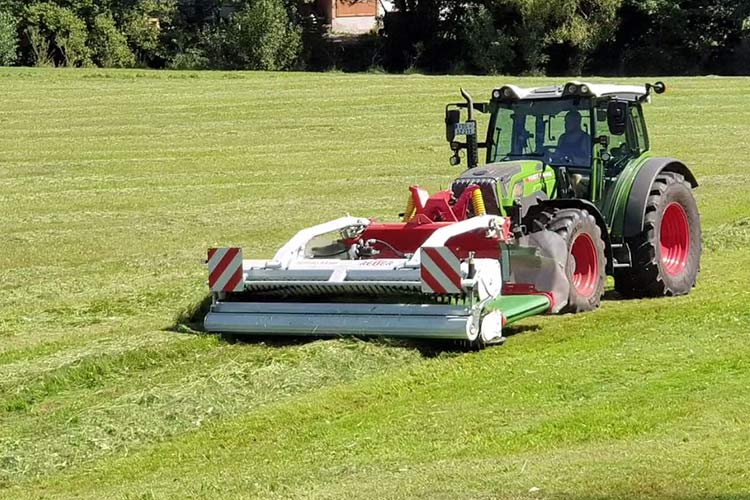

Dauergrünland

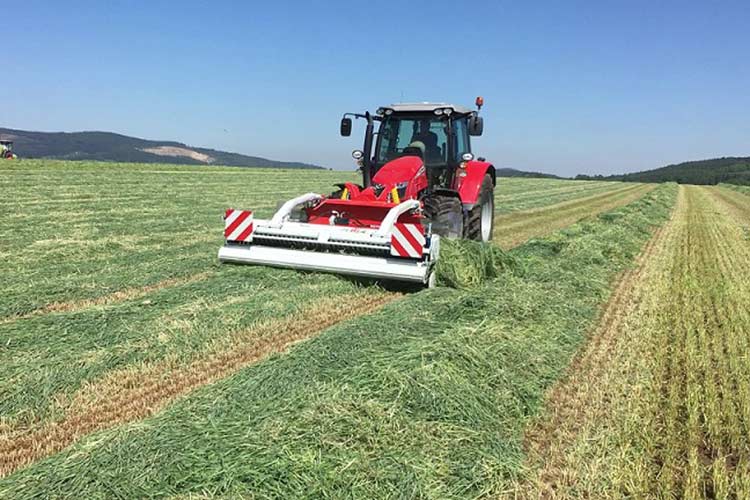

green rye

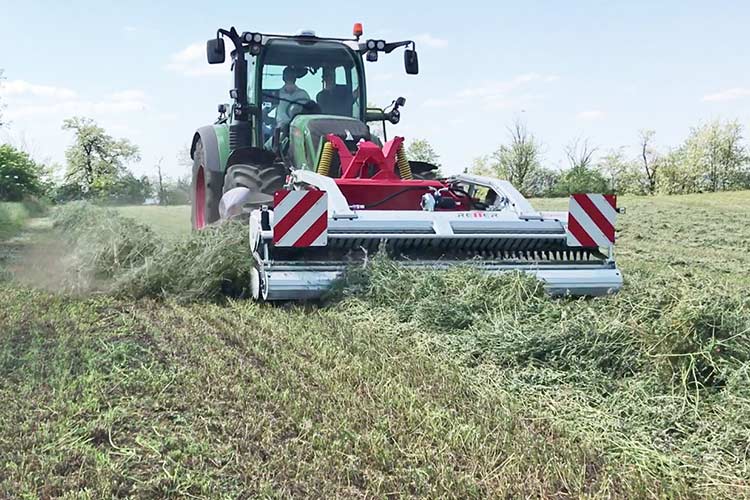

alfalfa hay

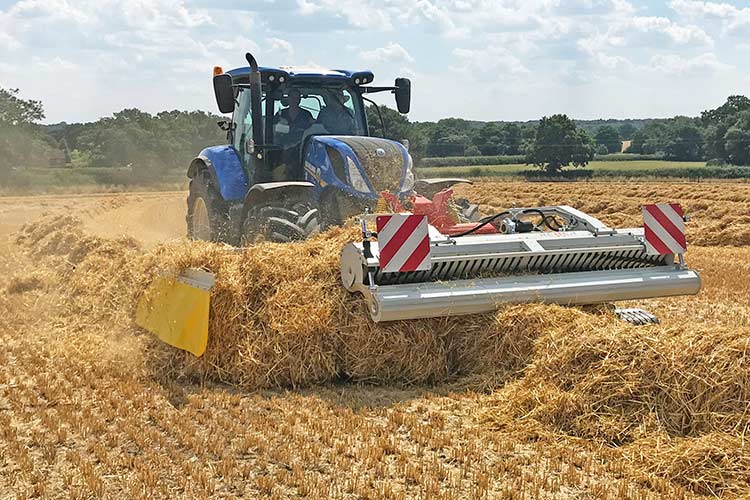

straw

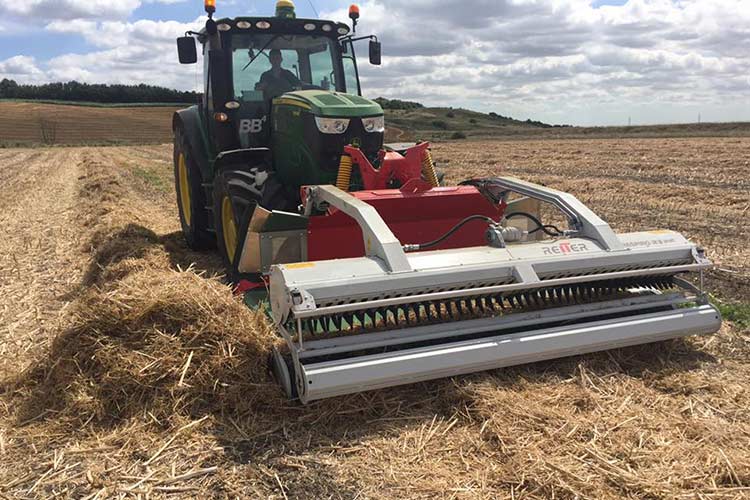

rape straw

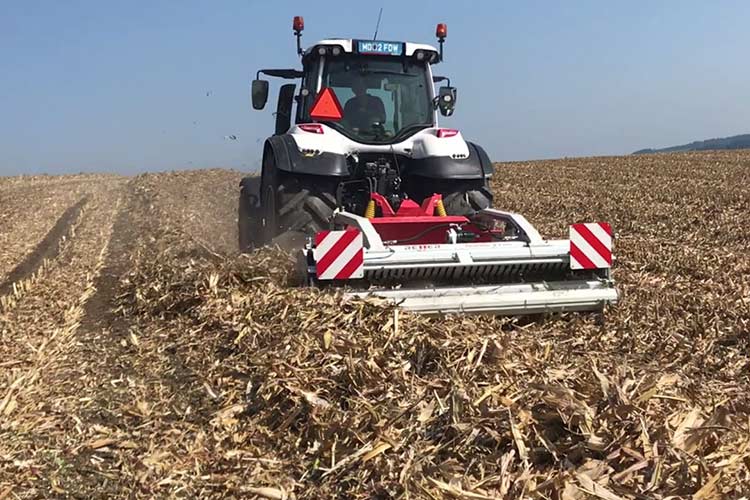

maize straw
clover grass

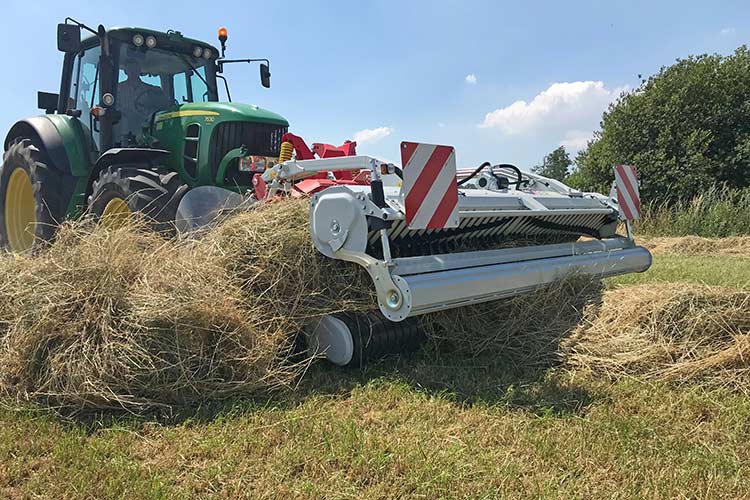

hay

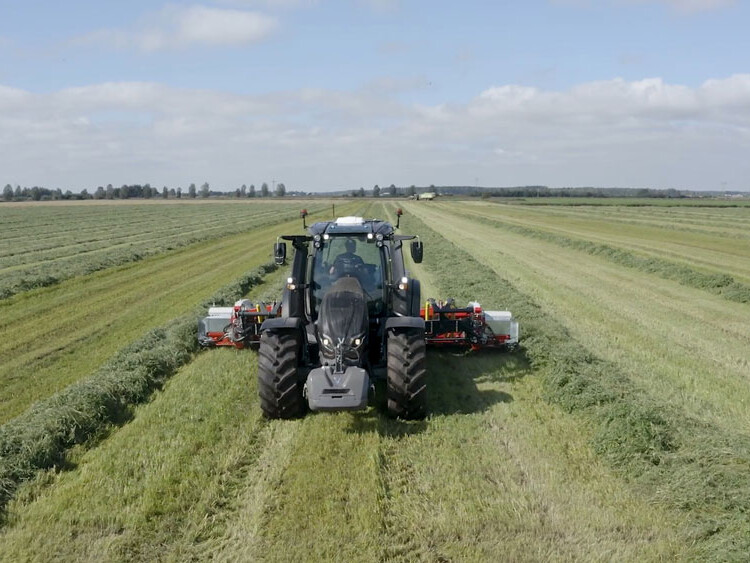

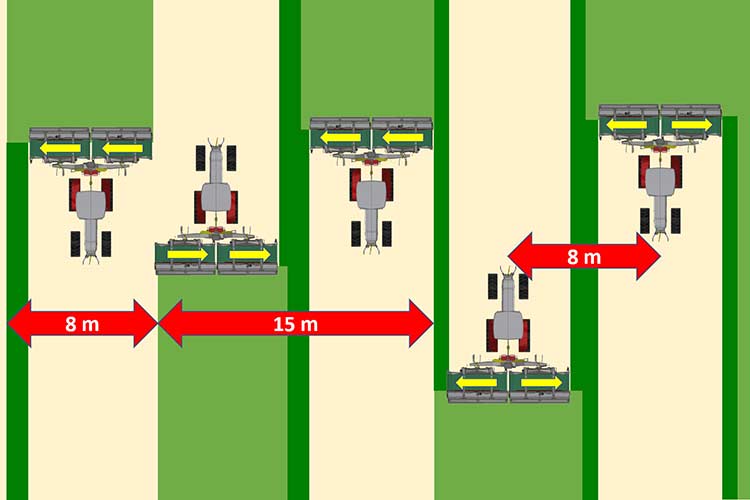

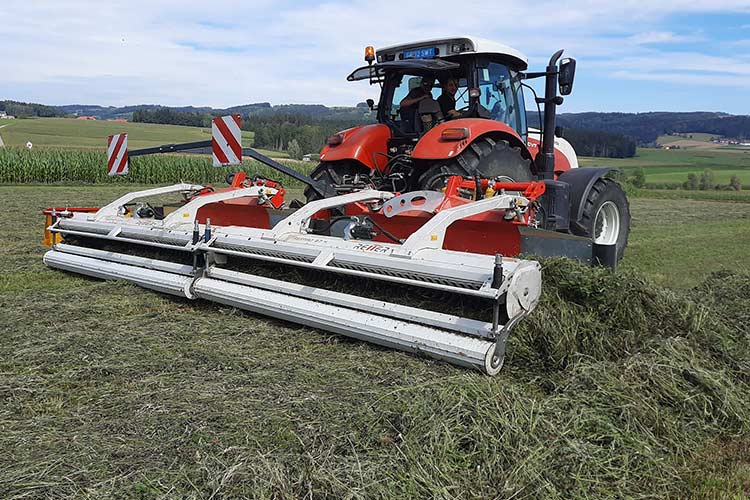

Possibilities of swath placement

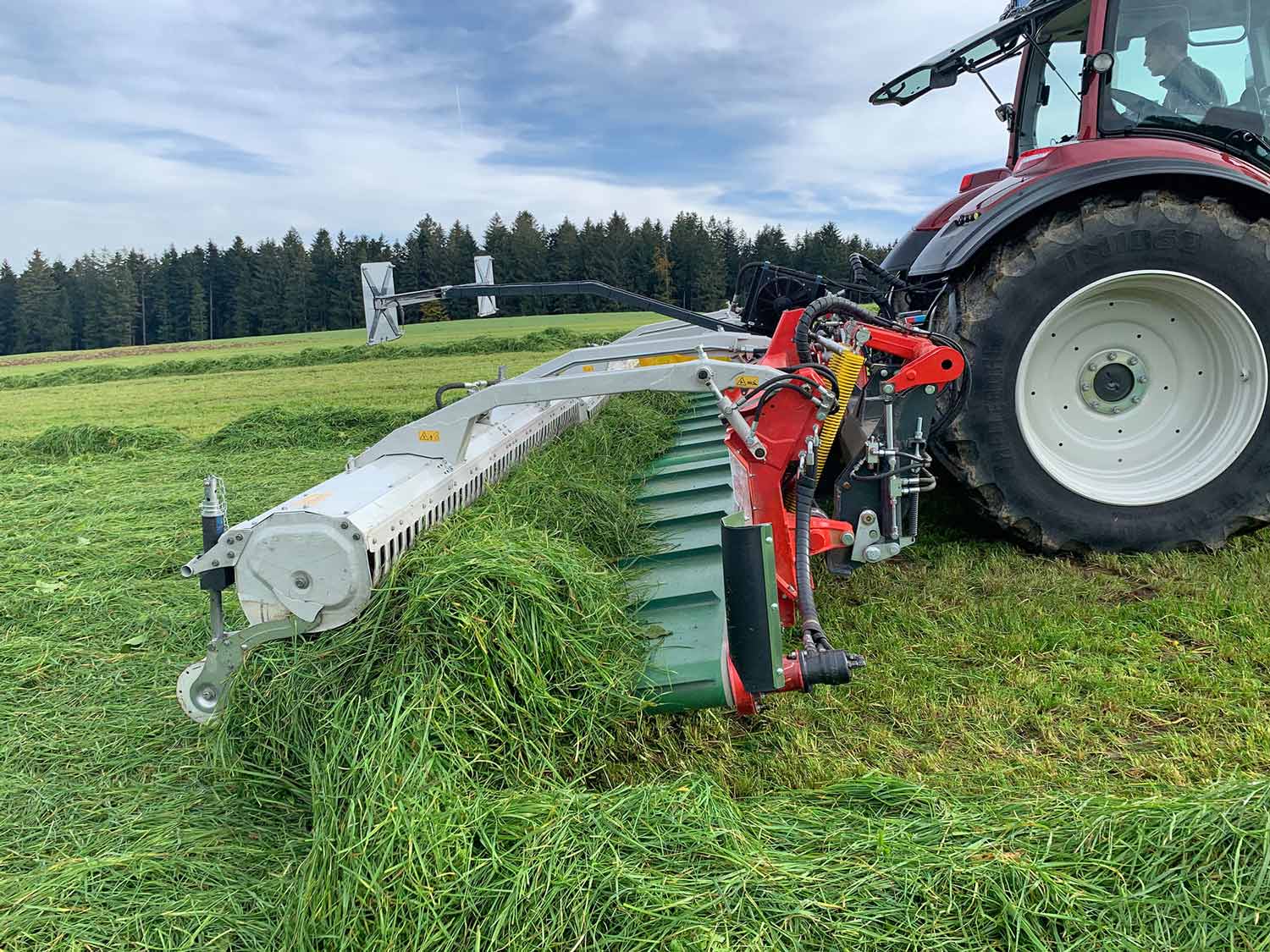

Seitenschwad
swath placement

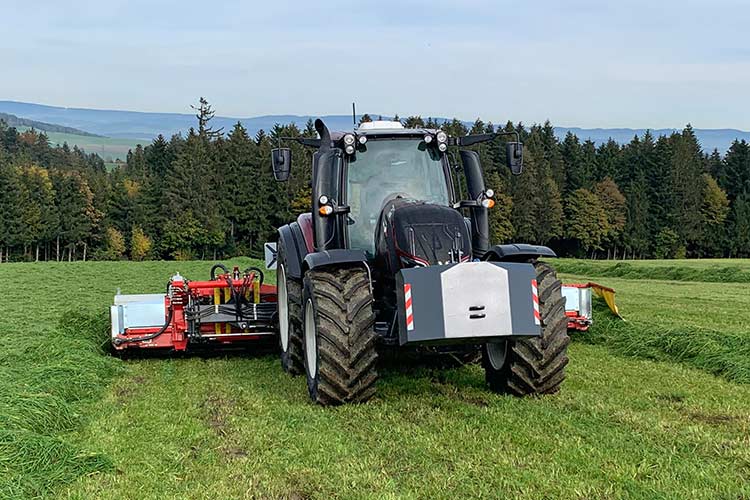

Auseinanderpflügen

Technology,
that pays off.


The way forward calls for a fundamental rethink from sweeping to lifting.
RESPIRO

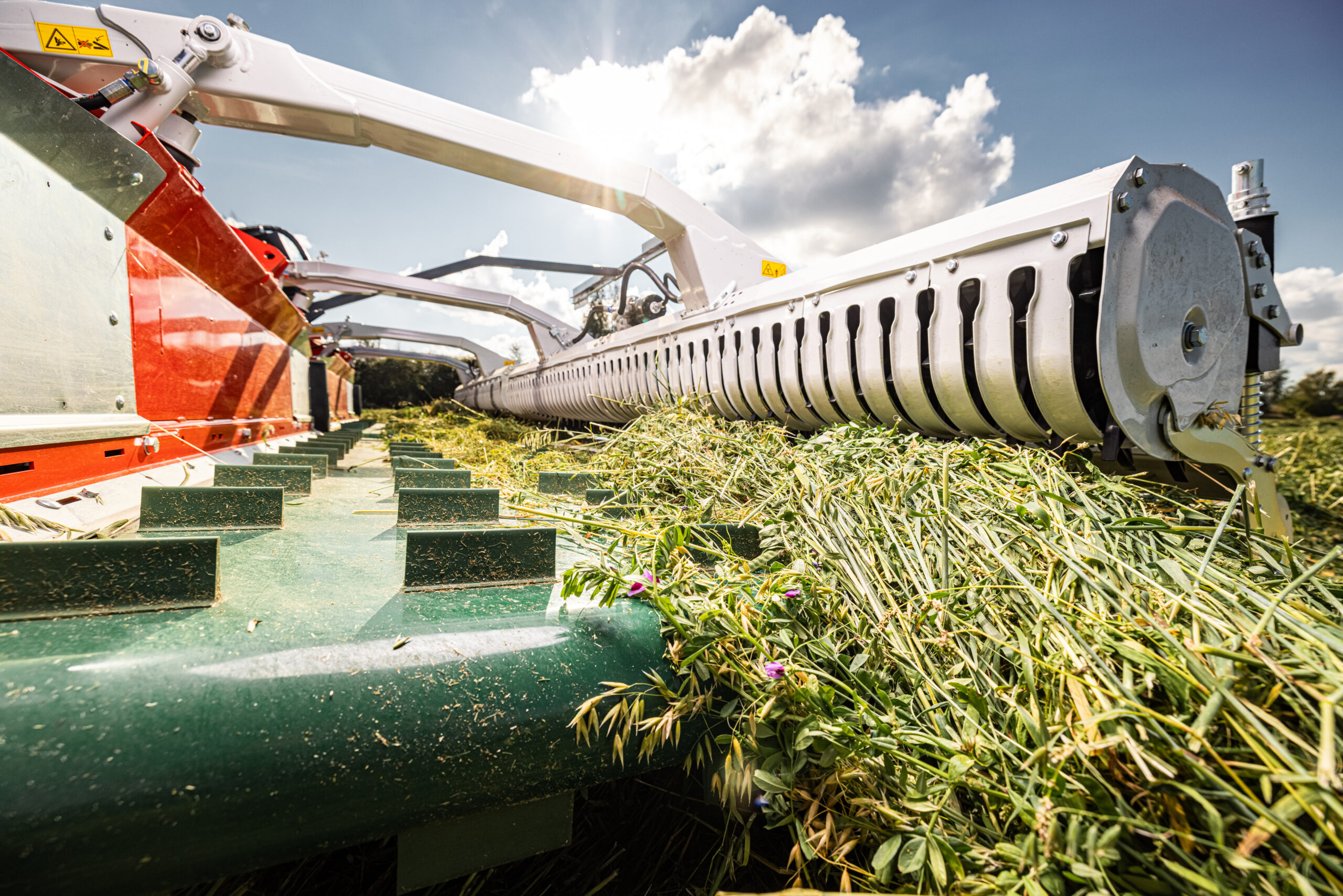

belt rakes are revolutionary in their features. The small-diameter, elastic, camless pick-up, combined with the trailing tines and conveyor rotor, delivers outstanding results.

Would you like to learn more about the pioneering RESPIRO-technology?

Technology in detail

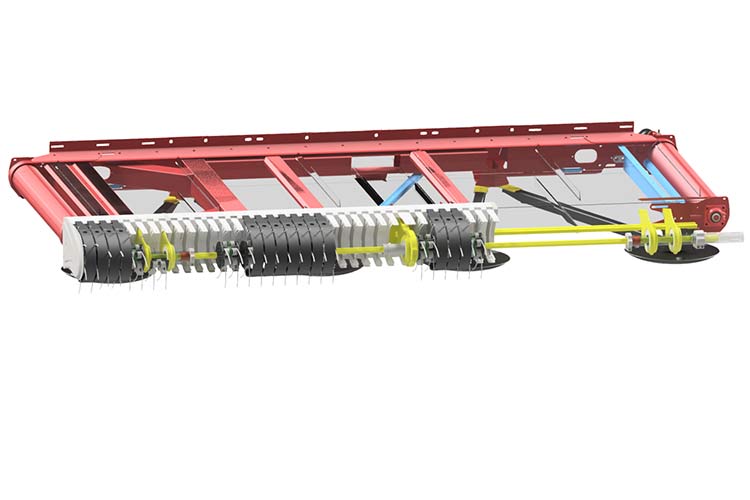

Flexible pick-up

best ground hugging

  • Best raking quality
  • No aggressive ground contact
  • Little tine wear
  • less tine breakages

More Details

Small diameter

powerful and gentle

  • Small distance between the tine tips
  • Low tine impact speed
  • SHigh performance even with short crop
  • Underruns large swaths
  • Allows trailing tines

More Details

Trailing tines

careful and durable

  • No aggressive ground contact possible
  • Stones an foreign objets stay on ground
  • Less wear on tines
  • Less tine breakages
  • Liquid manure particle stay on ground

More Details

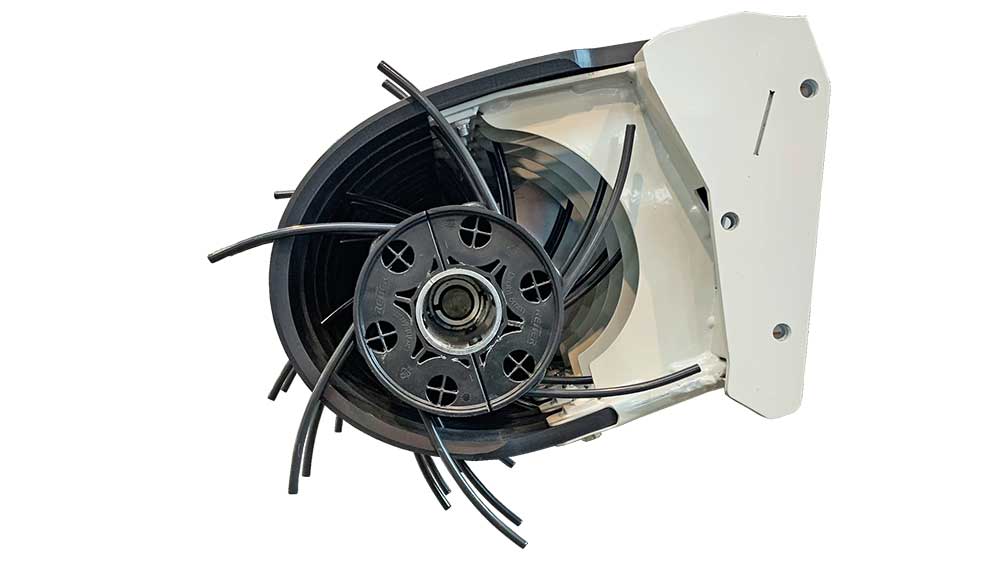

Camless pick-up

maintenance-free

  • Allows small diameter
  • Radical simple system
  • Significantly fewer components – camless
  • Axial completely play-free
  • Center drive and 2 double bearings

More Details

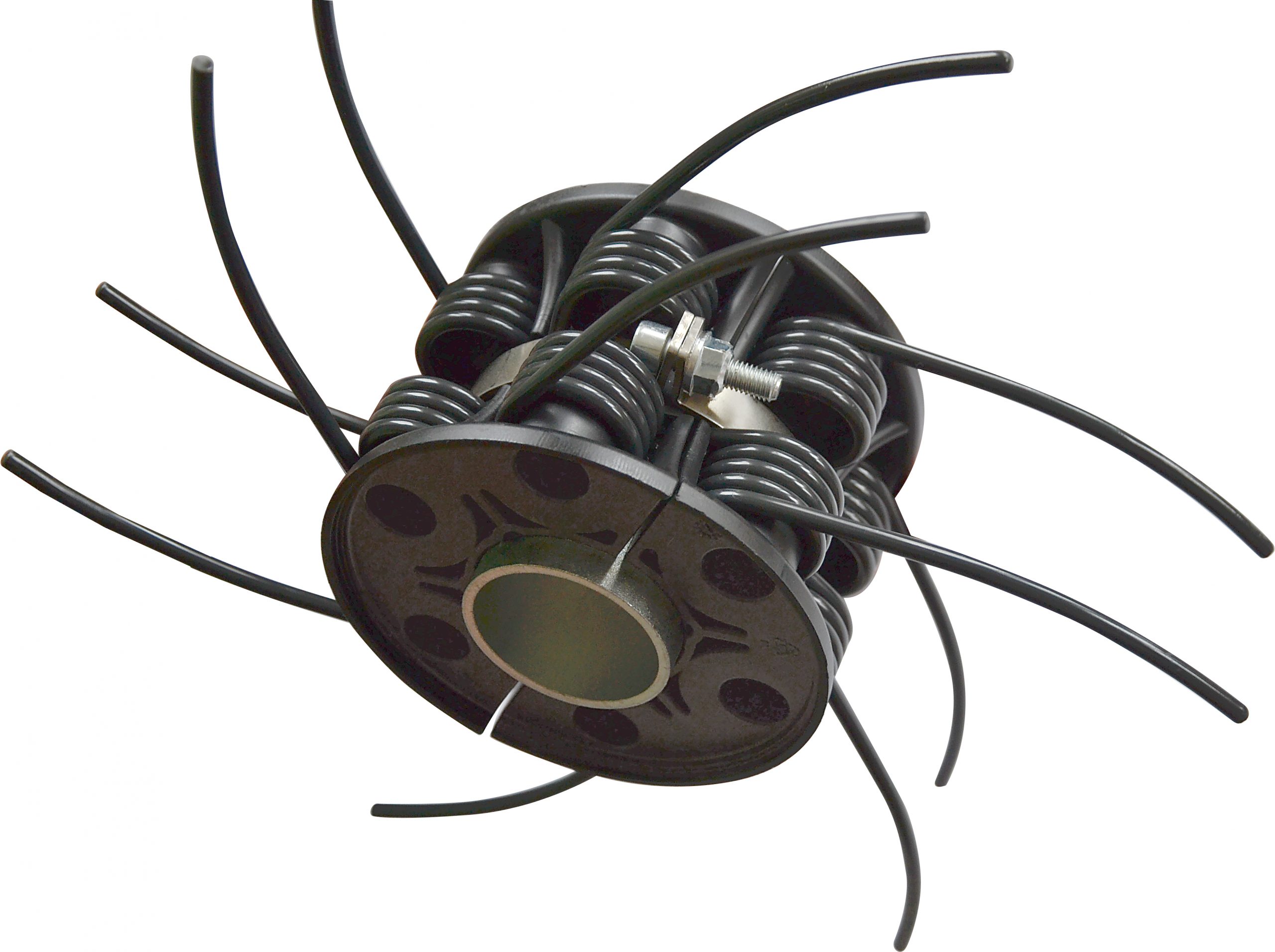

Anti-loss system

no loose tines possible

  • Unique tine mounting
  • Tine coil is supported from inside
  • Tines that are broken in the coil are not lost

More Details

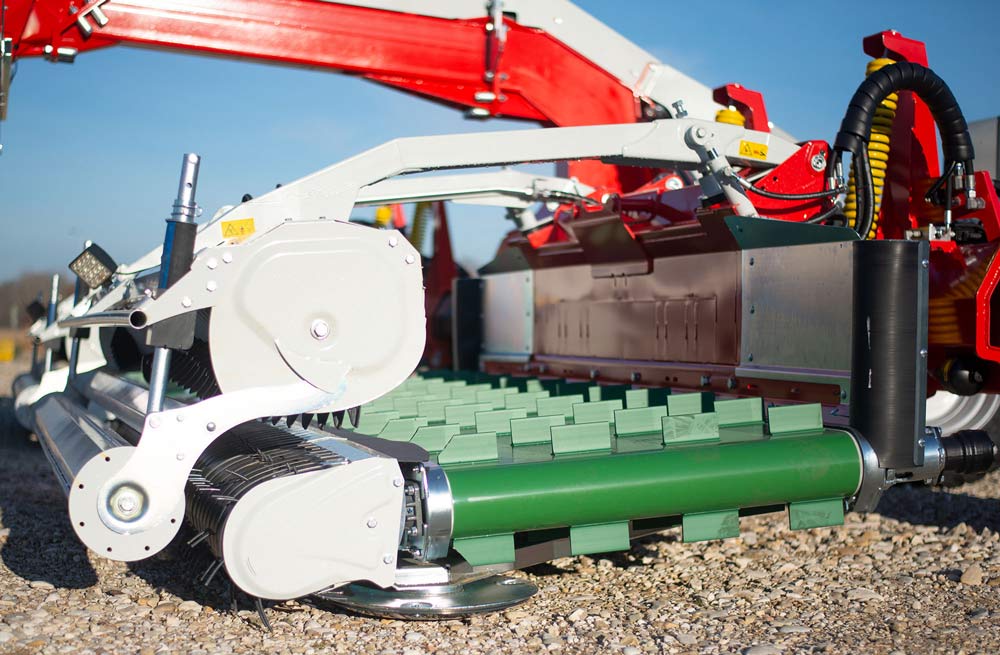

Sliding disc close to the tines


best tine control

  • Free rotating
  • Large contact surface
  • Robalon sliding disc optional

More Details

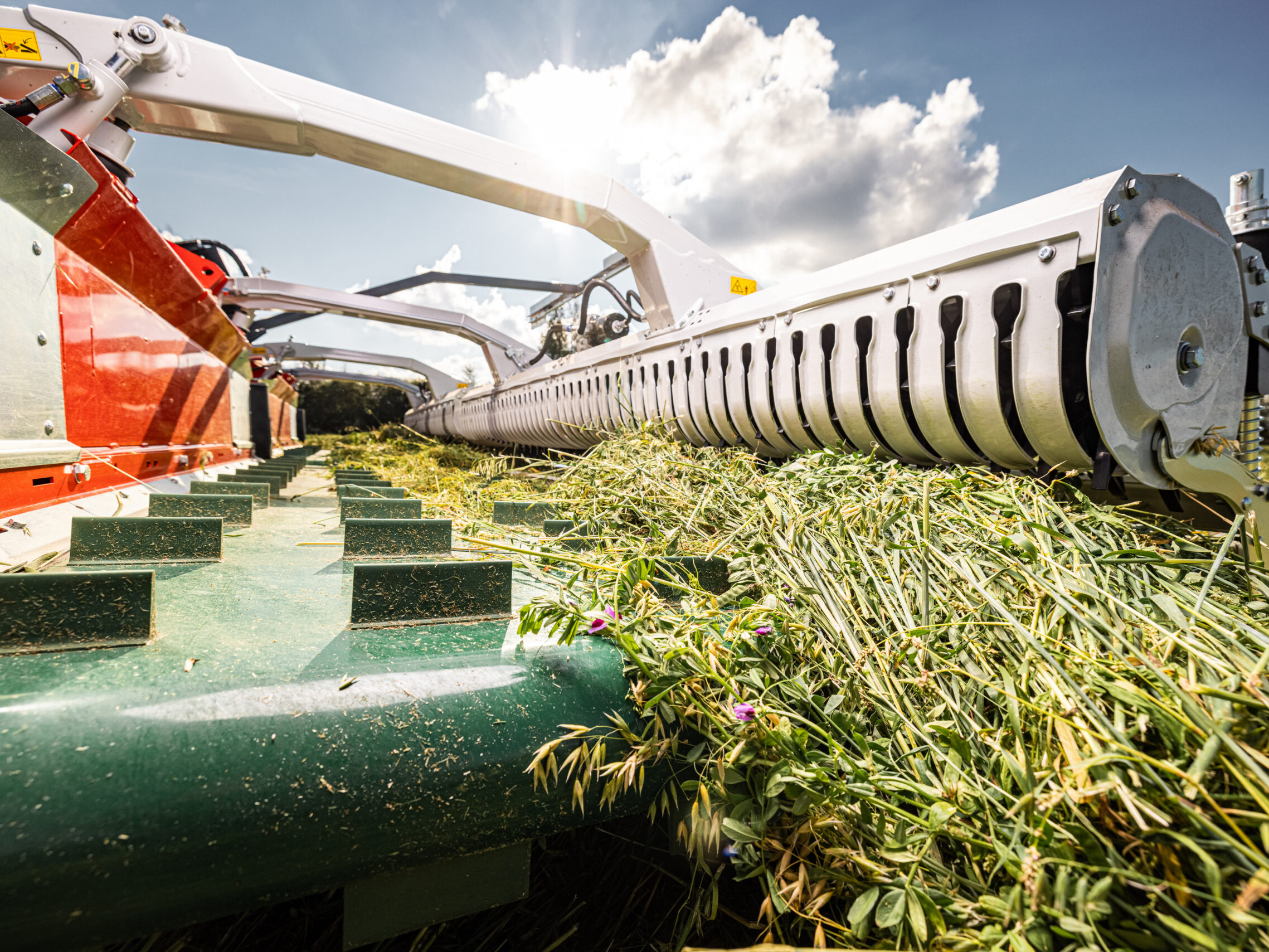

Conveyor rotor and swath roller

uniform crop flow

  • Enables uniform crop flow

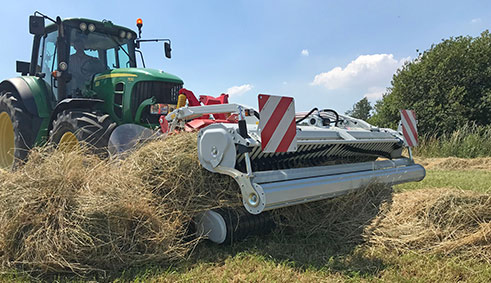

  • Conveyor rotor hydraulically suspended and height adjustable
  • Swath roller guide the crop flow over the pick-up

More Details

Technology in detail

RESPIRO R6 rd | R7 rd

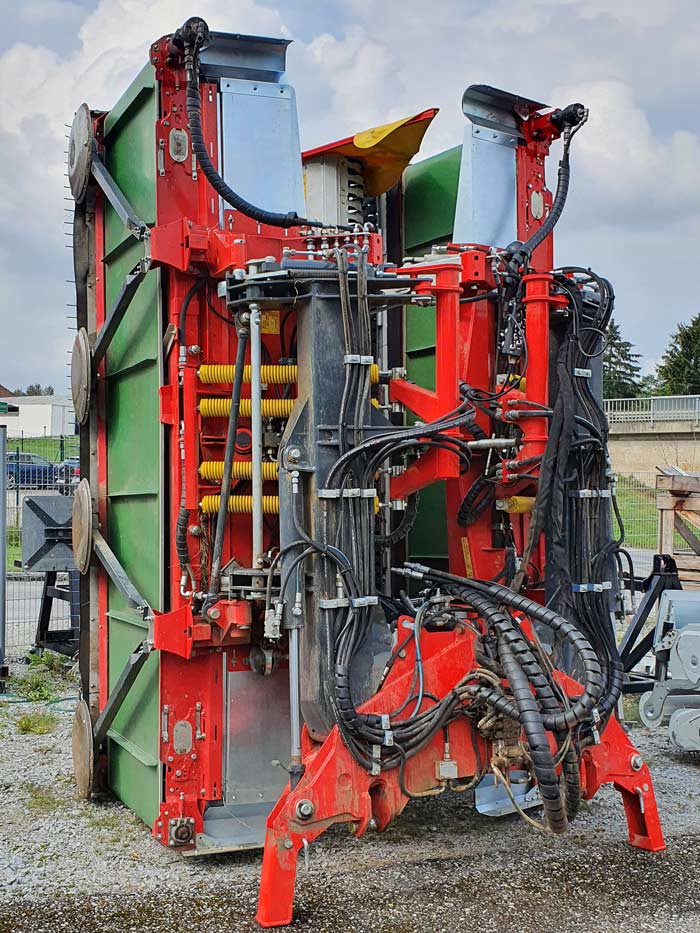

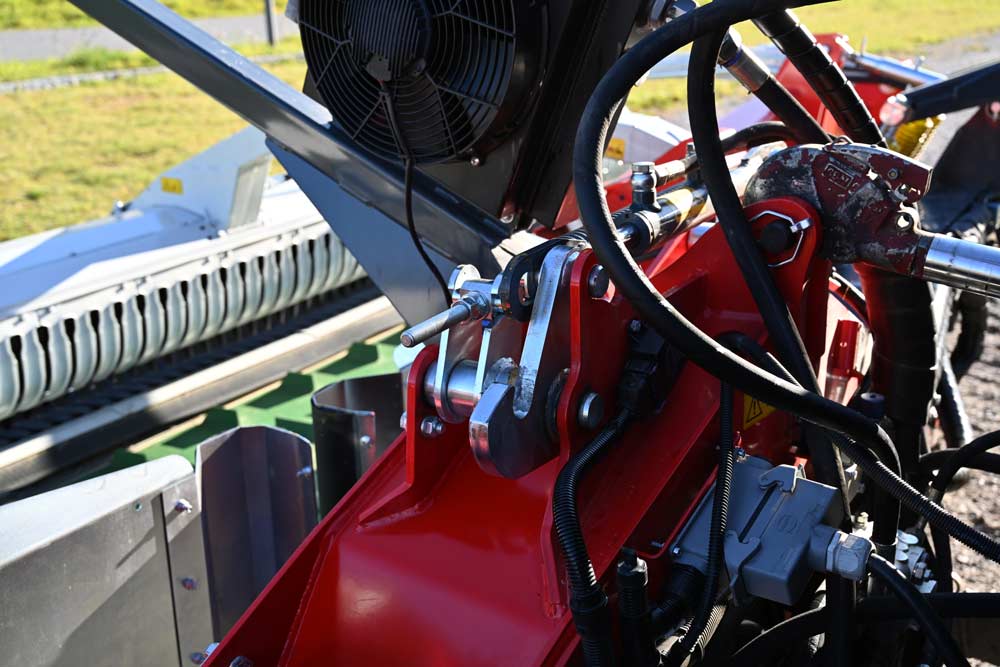

Mounting / folding framework / parking

  • Mounting cat III
  • Robust construction
    • High life time of the framework
  • Folding double-acting
    • Secure folding also on slopes
  • Mechanic transport lock
    • Secure road transport
    • Unlocked hydraulically – no rope

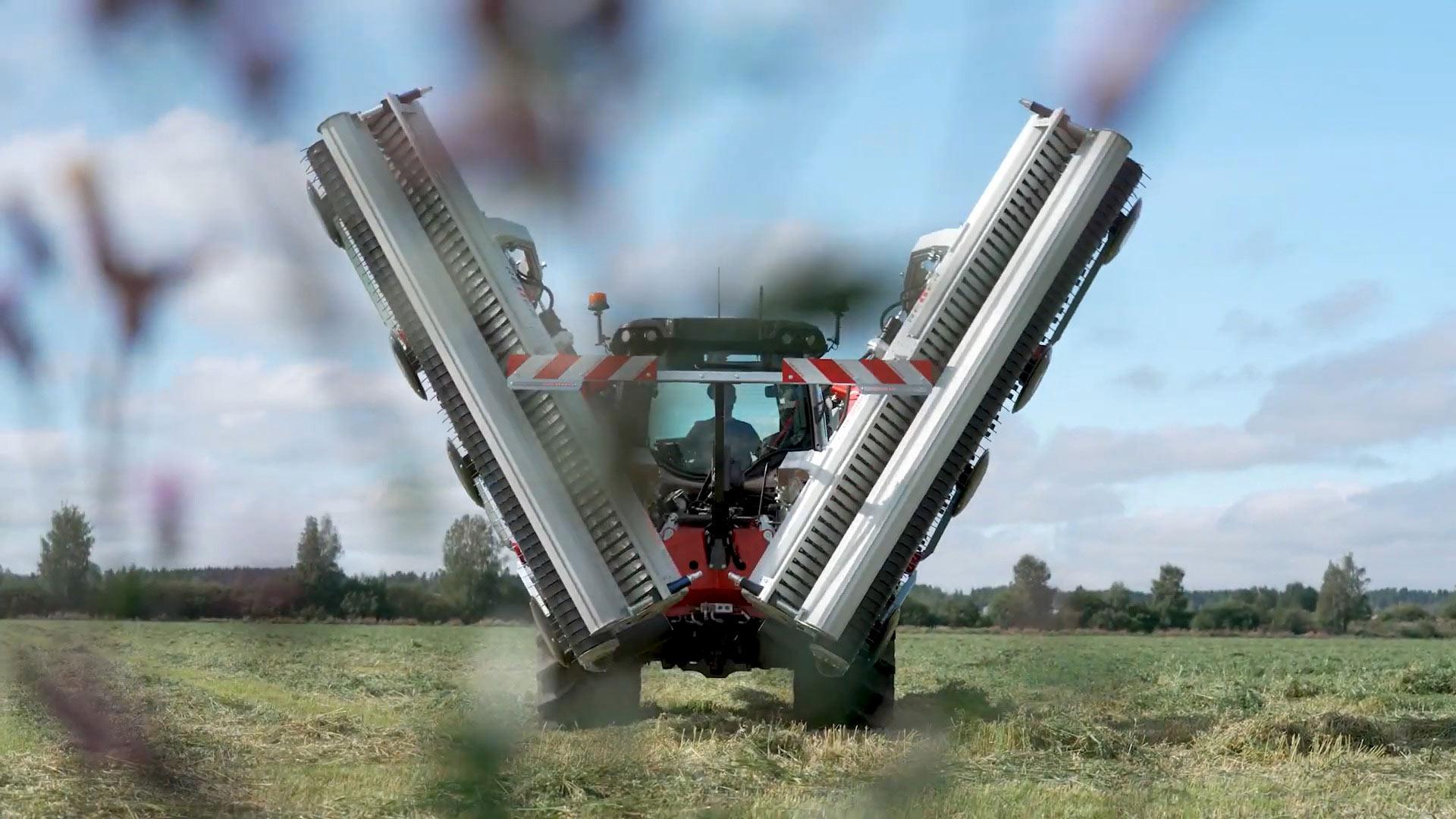

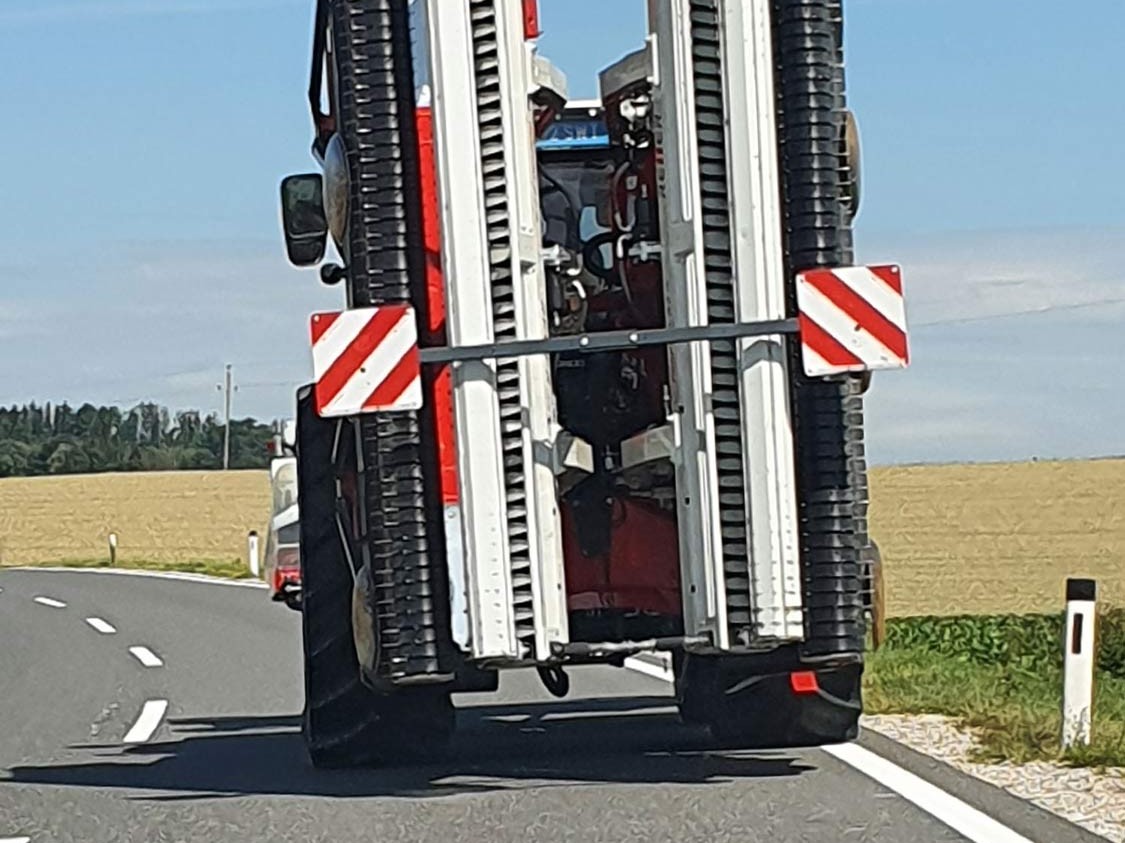

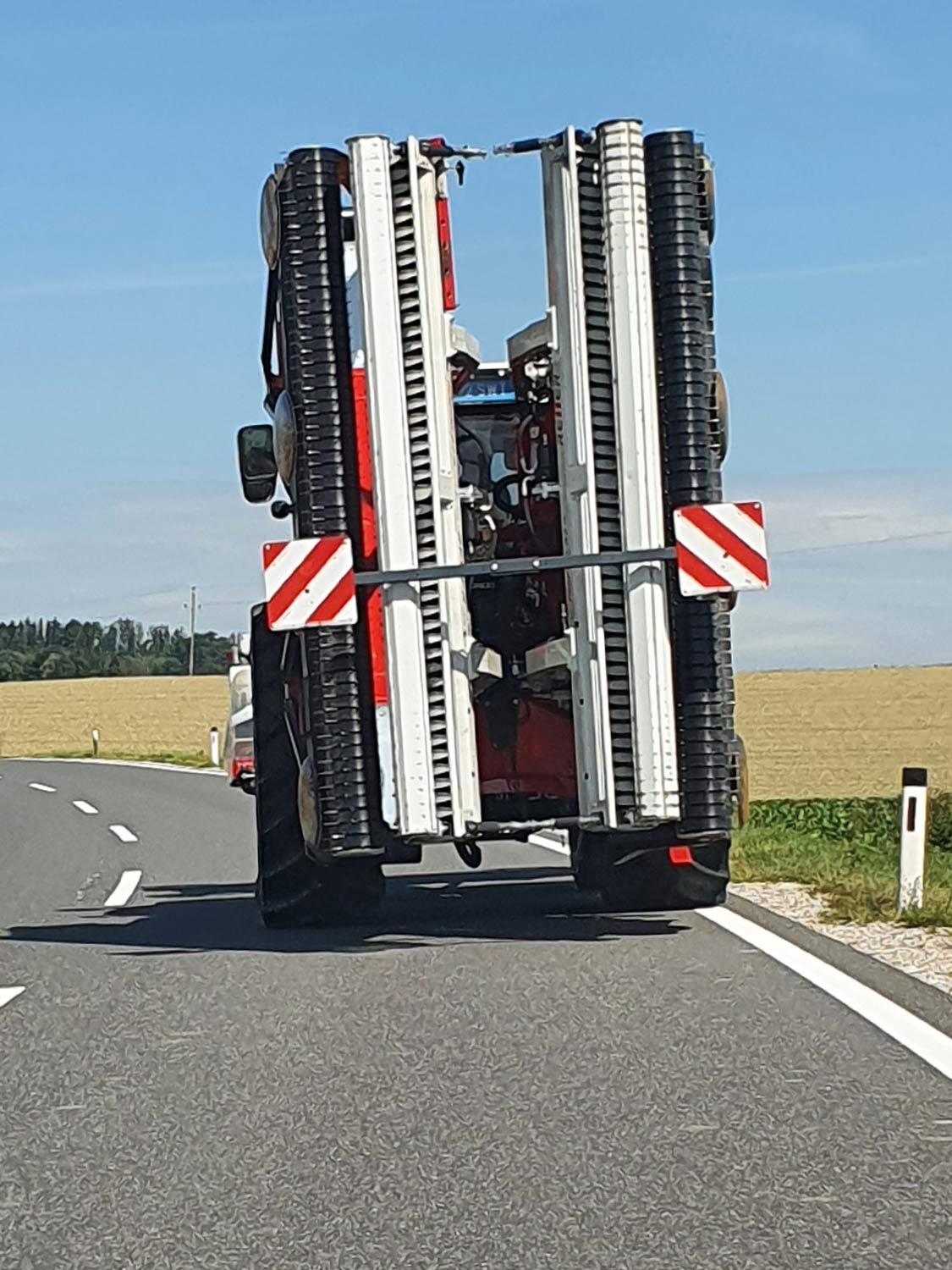

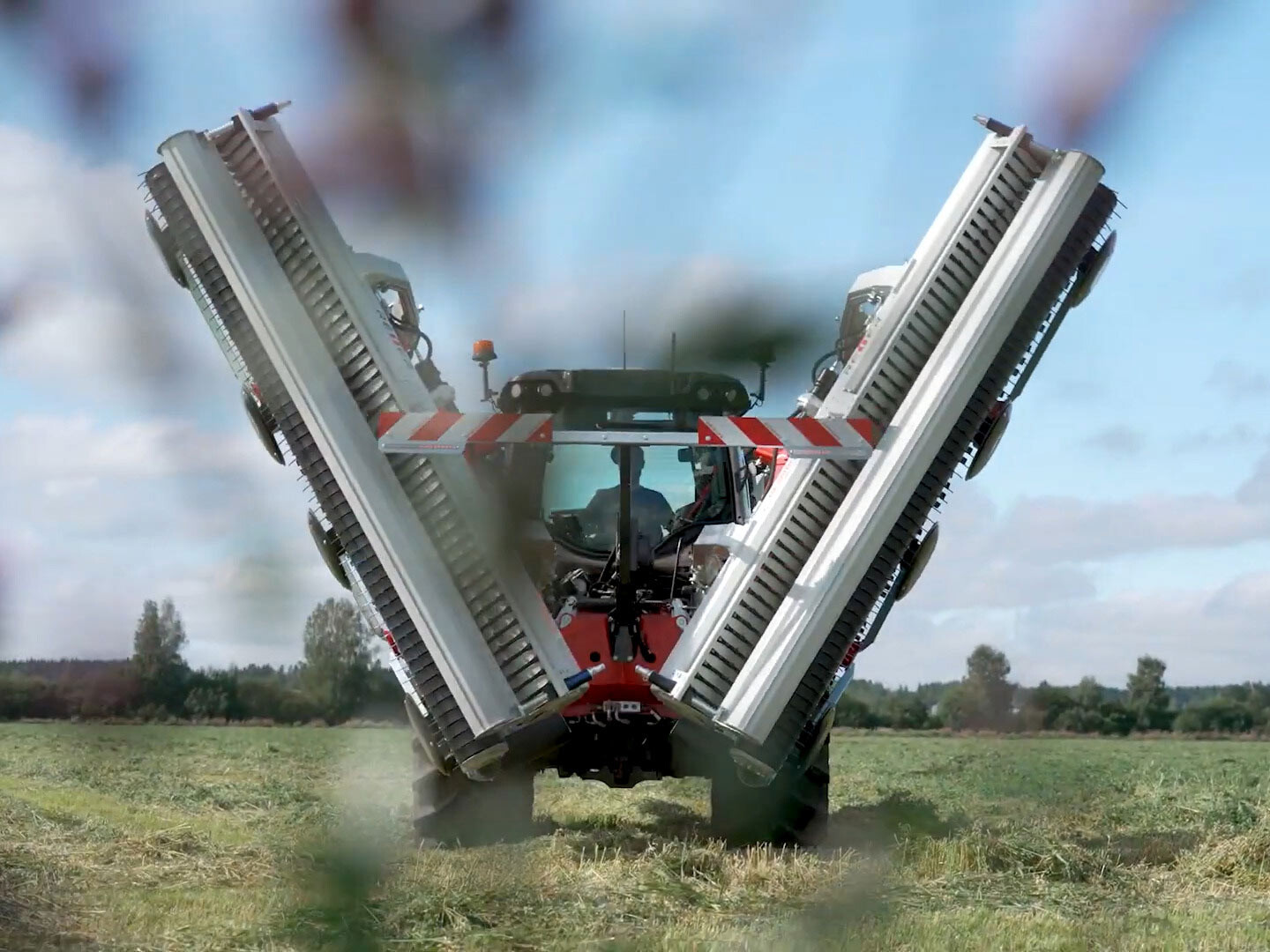

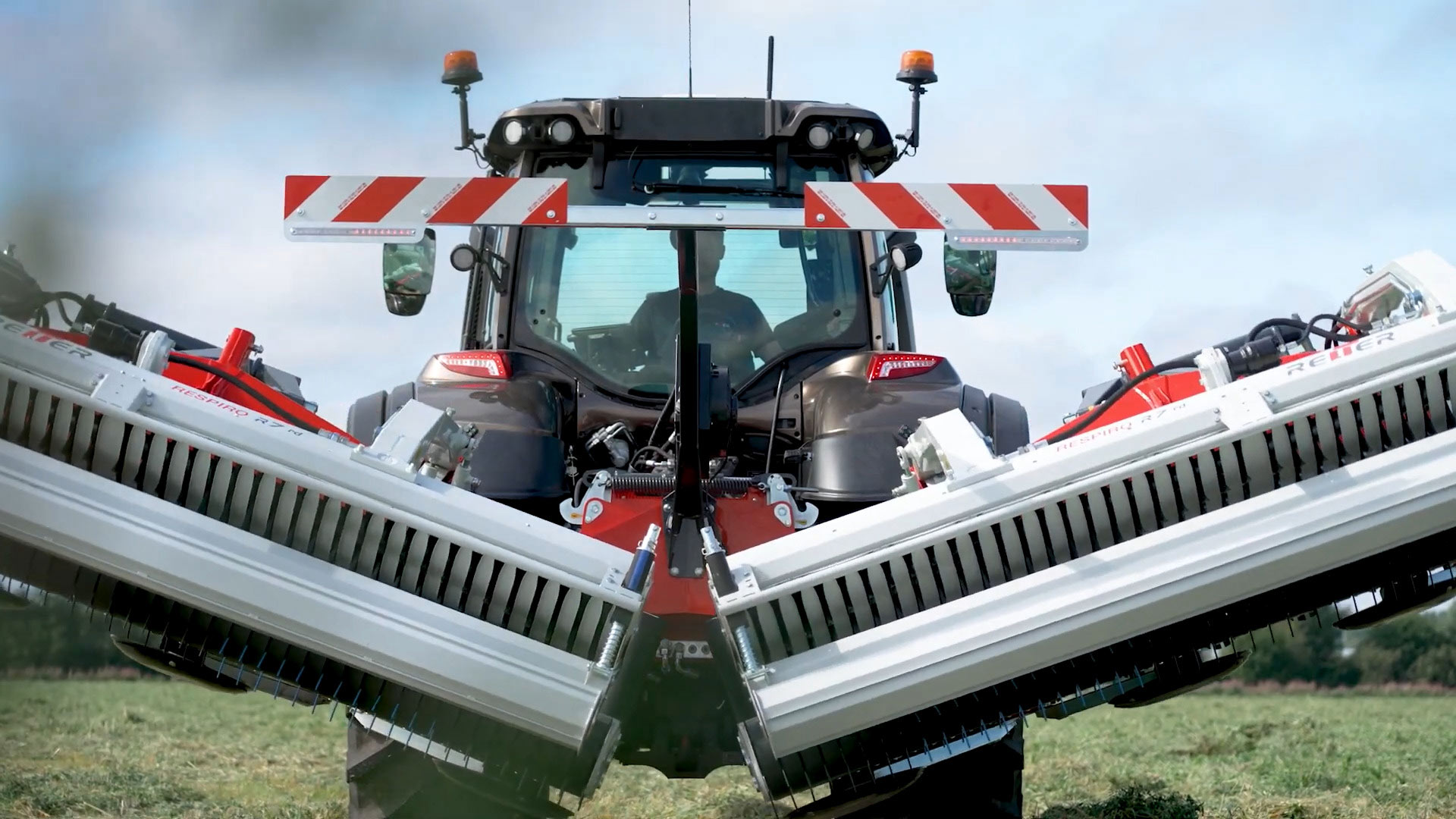

Compact in Transport

  • Transport width: 2.40 m
  • Secure transport lock of the working units using the hydraulic spring tensioner
    • No swinging
  • Road lights standard
    • Secure road transport

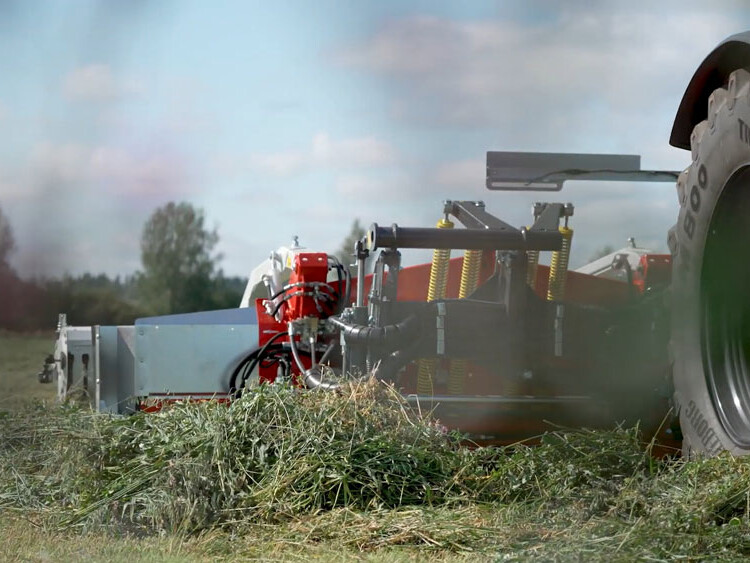

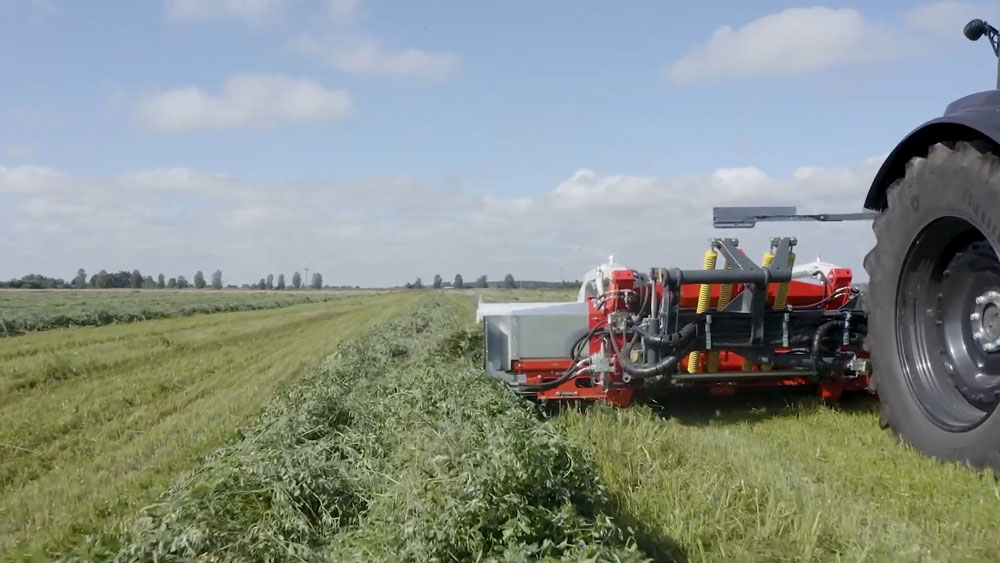

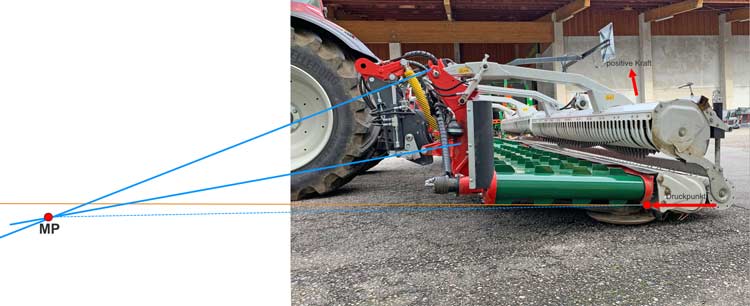

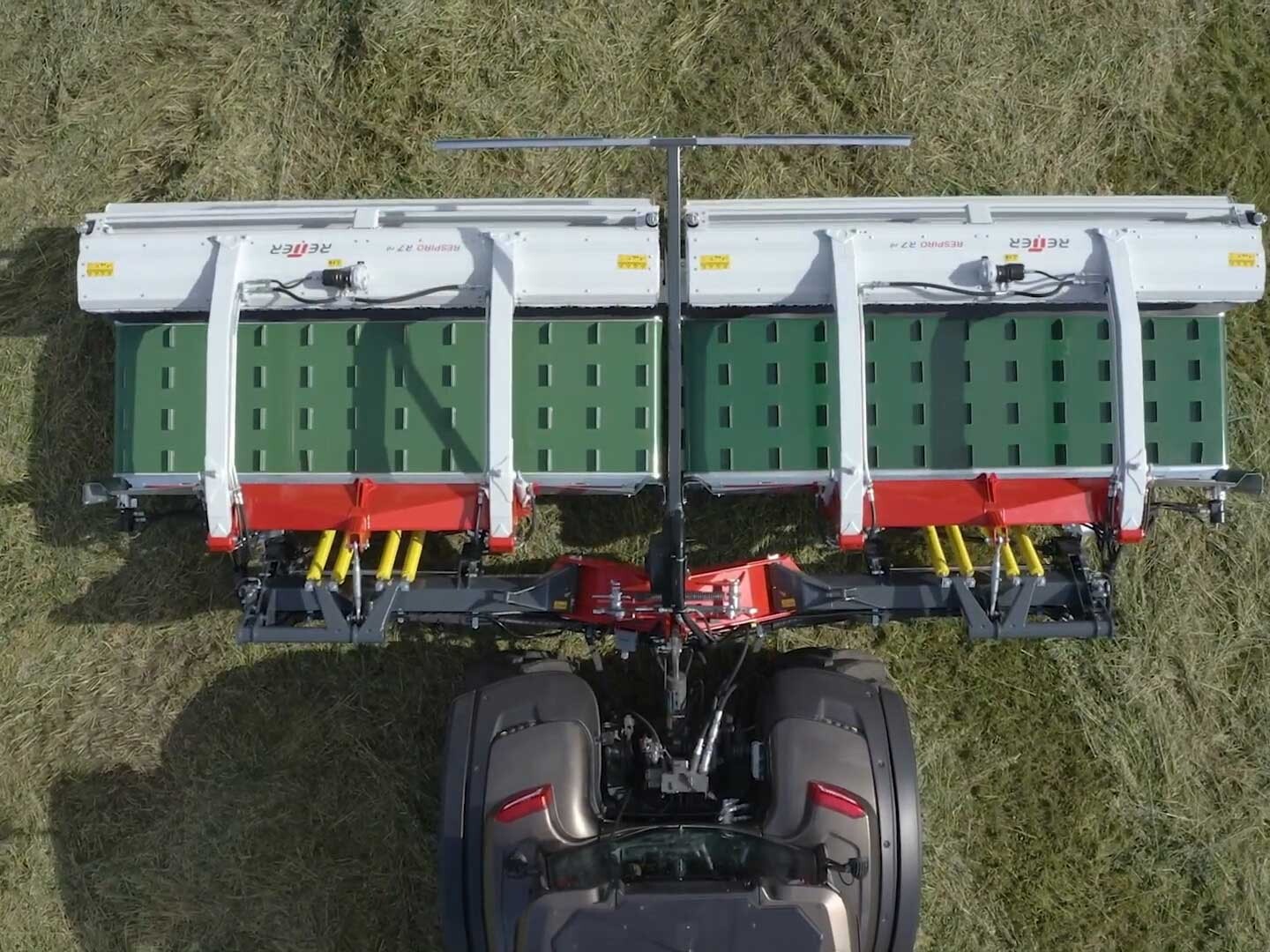

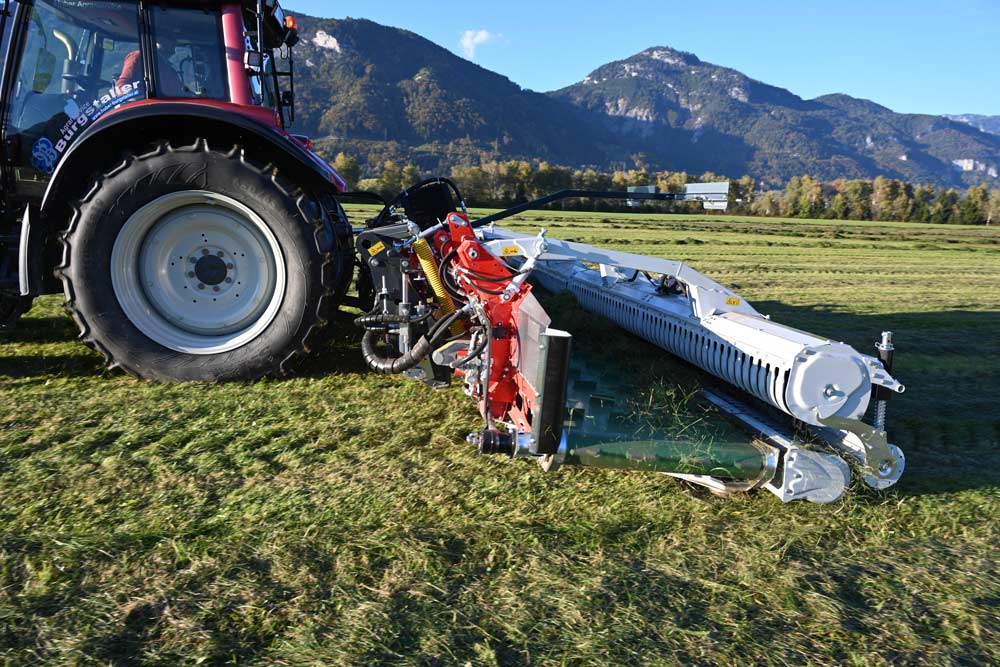

Kinematic for working unit

  • Suspended on a roller system
    • patented suspension for best ground hugging
    • 2 rollers and a top linkage guide the working unit
    • Weight close to the tractor
    • Long service life
  • Suspension using 4 spiral springs
    • Hydraulic adjustable
    • responsive without friction
    • Less weight on the ground
    • Less wear
    • Protection of the sward
    • Secure transport lock for road transport

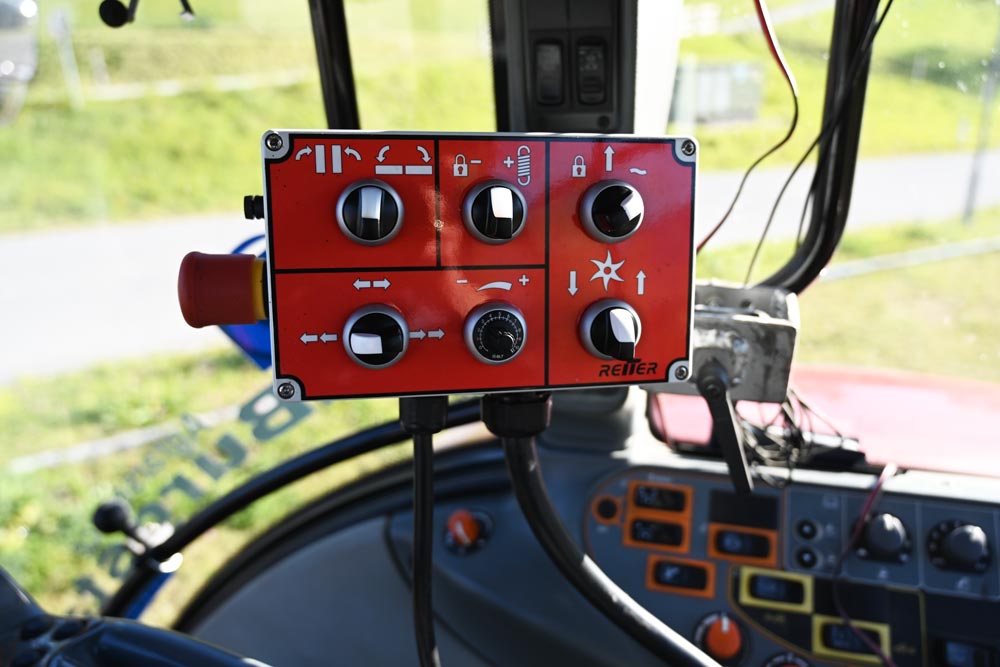

    • Easy adjustment via terminal
(scala in the view of the driver)

RESPIRO Bandschwader kinematik

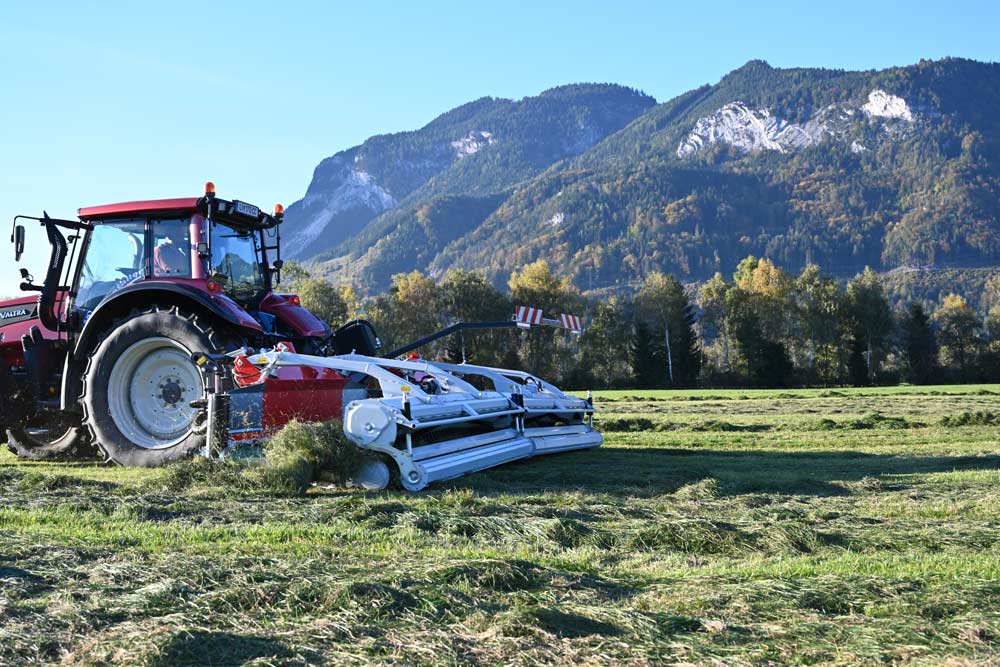

Perfect lateral ground hugging

Working units +/- 10 degrees

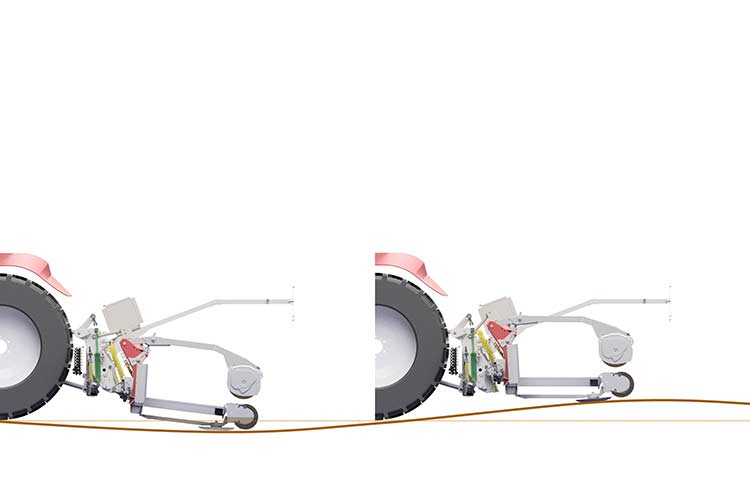

Perfect ground hugging lengthwise

  • Angle adaption lengthwise
    • Best tine control
    • Uniform raking heigth

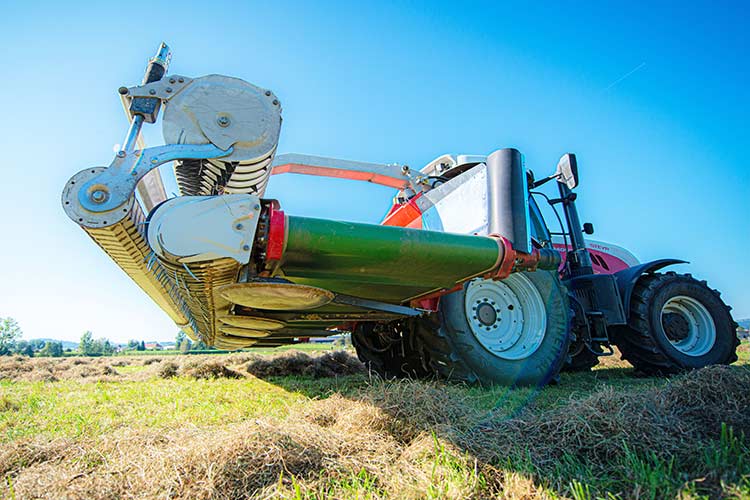

Headland position

  • Lifting using rear hydraulic linkage
    • Optimum usage of existing hydraulics
    • Simple and fast
  • High manoeuvrability

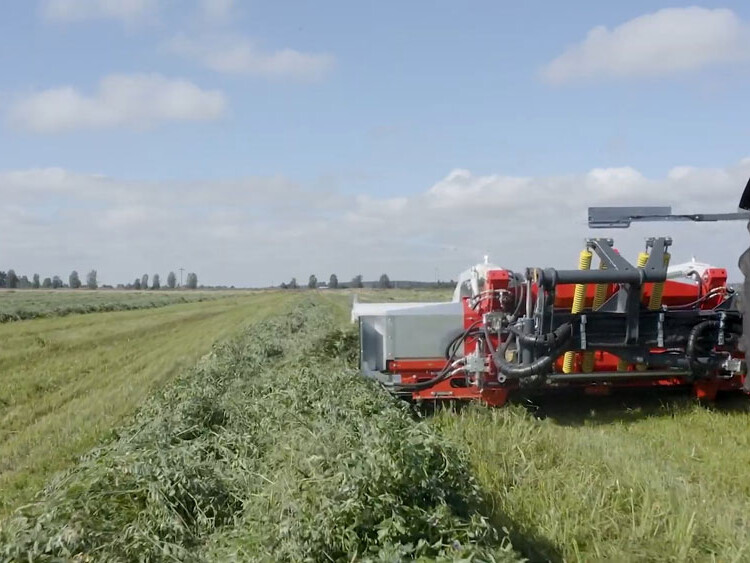

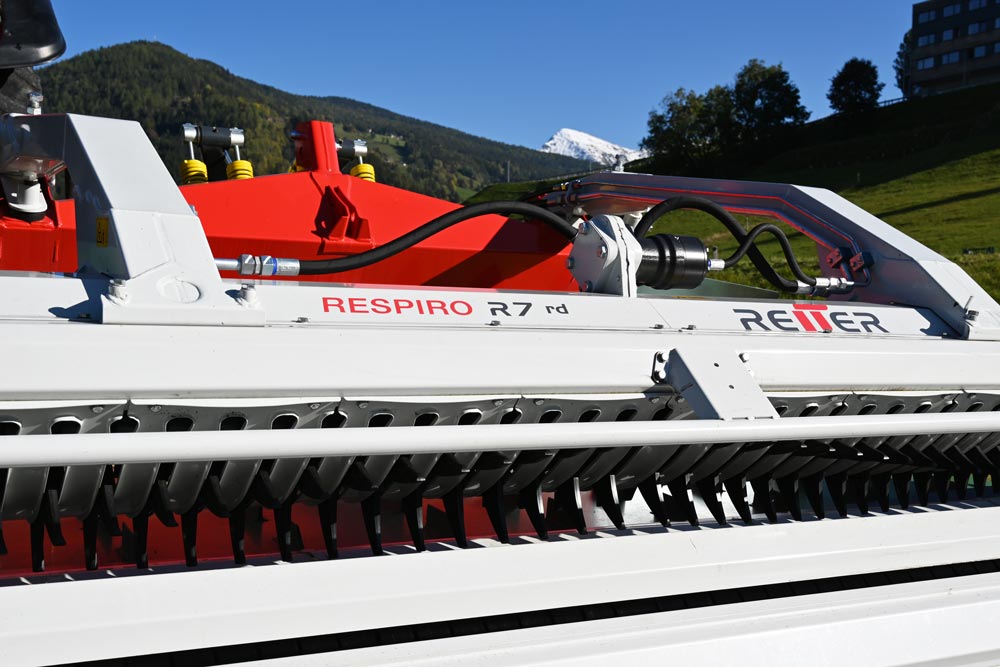

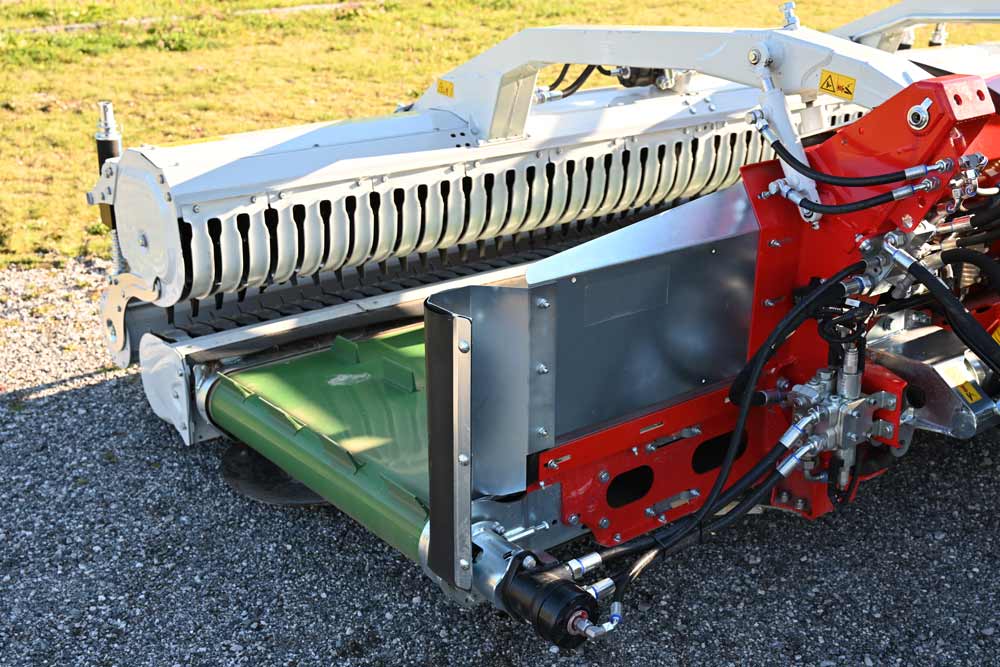

Hydraulic pick-up, rotor and belt drive

  • 2 DA valves from tractor
    • System speed is adjusted via the oil flow rate of the tractors valve
    • Belt speed is adjusted via terminal separately

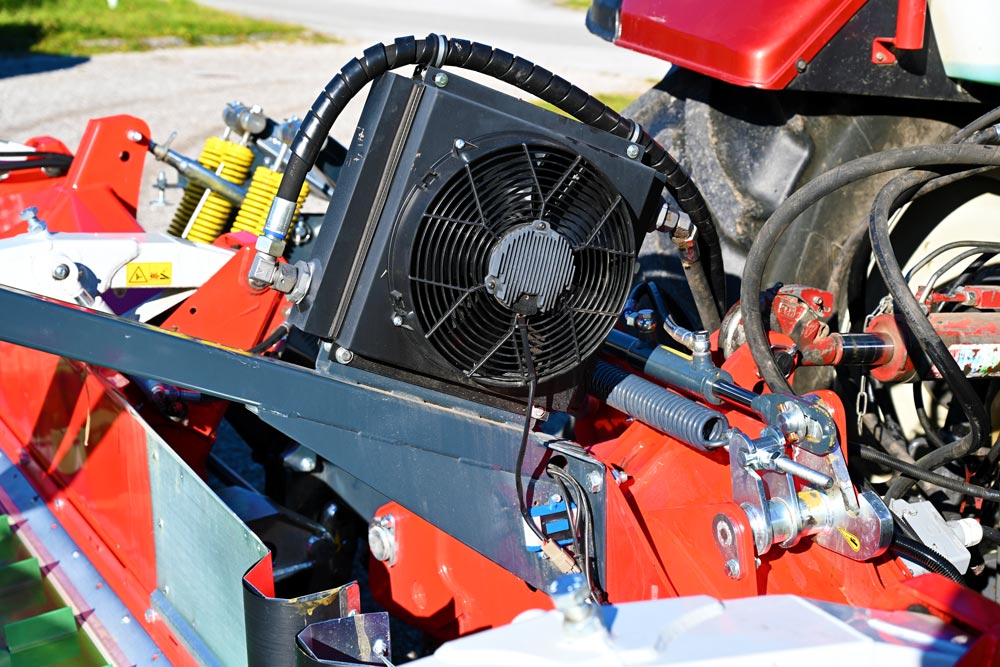

  • Oil cooler on the machine

Operation

  • Drive of pick-up, rotor and belt using 2 DA valves
  • Using rear hydraulic linkage for lifting
  • Terminal (load sensing or permanent oil flow)
    • Folding in working or transport position
    • Swath placement (side swath left or right / single side swath)
    • Belt stop via pushing a button – to clean up corners,…
    • Rotor height
    • Spring supsension adjustment of the working units

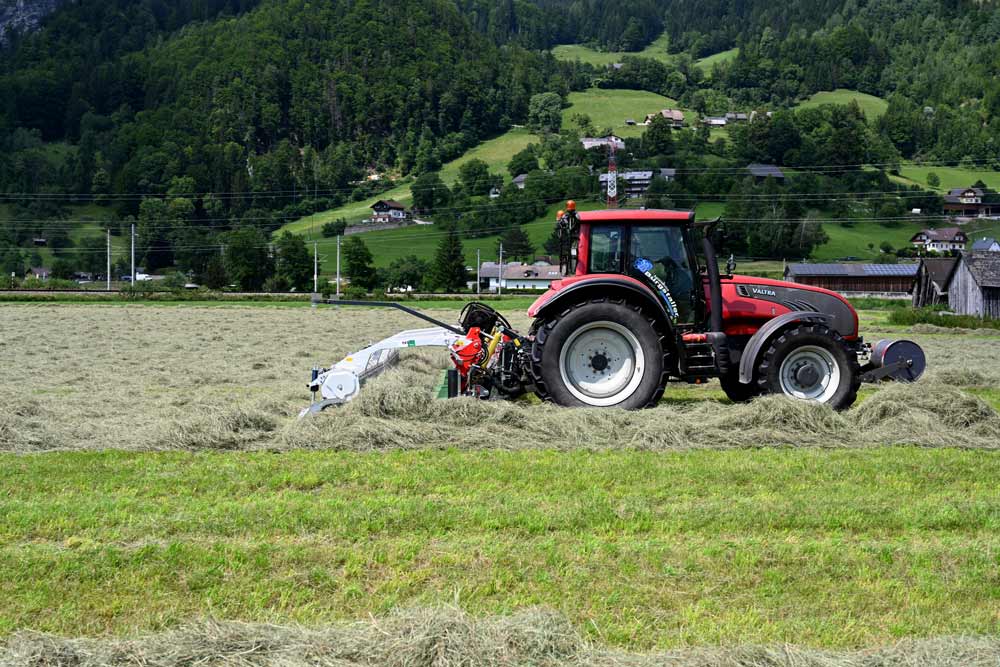

Necessary connections / tractor requirements

  • 2xDA valves for pick-up, rotor and belt drive
    • Minimum oil flow rate 2x 60 l/min
    • Adjustable, electric spool valves
  • Load sensing for folding
  • 3-pin outlet for terminal and oil cooler
  • Reverse-drive system
  • Min. 180 hp on flat area (6 cylinder) with 800 – 1200 kg front weight
  • Hydraulic top link recommended
  • Tractor oil pump: at least 160 l/min

Technical data R6 rd | R7 rd

RESPIRO R6 rd RESPIRO R7 rd
Working width side swath [m] 6.00 + Schwad 7.00 + Schwad
Belt width [mm] 700 / 1000 1000
Transport length [m] 2.67 2.67
Transport width [m] 2.40 2.40
Transport height [m] 3.50 4.00
Parking height [m] 3.10 3.60
Weight [kg] 2950 / 3150 3380
Area performance [ha/h] 4-8 5-10
Hydraulic connections required 2 DA + LS 2 DA + LS
Electric connections required 2×3 pin 7 pin
